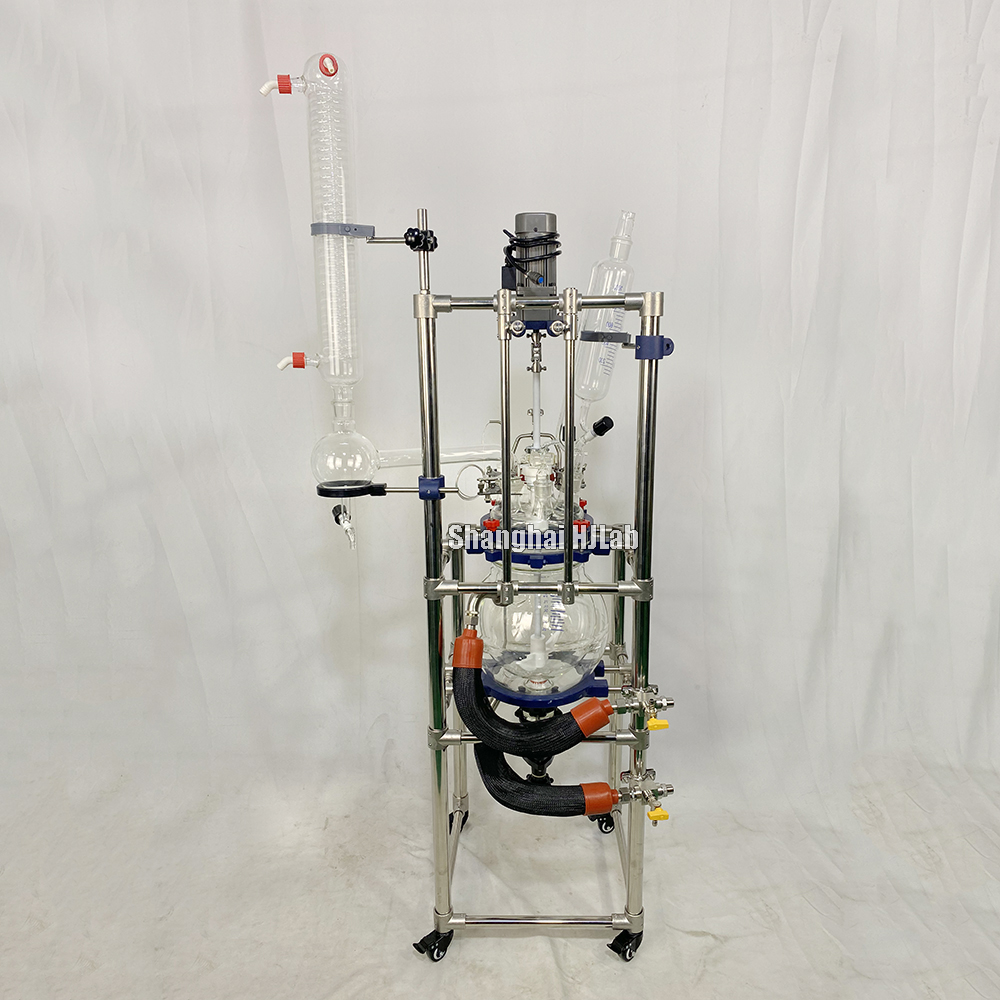

Jacketed Spherical Glass Reactor with 5L, 10L, 20L and 30L capacity. Double Layers Glass Reaction Vessel. Constant Pressure Glass Feeding Funnel. Cooling Coils Condenser. Glass Lid with 7 openings. Zero-dead space Discharging PTFE Valve. Stainless Steel Supporting Frame with Casters.
Glass Layers
Double Layer
Capacity
5L
10L
20L
30L
Glass Reaction Vessel
Spherical

Jacketed Spherical Glass Reactor with 5L 10L 20L 30L Double Layer Glass Reaction Vessel

Jacketed Spherical Glass Reactor with 5L 10L 20L 30L Double Layer Glass Reaction Vessel

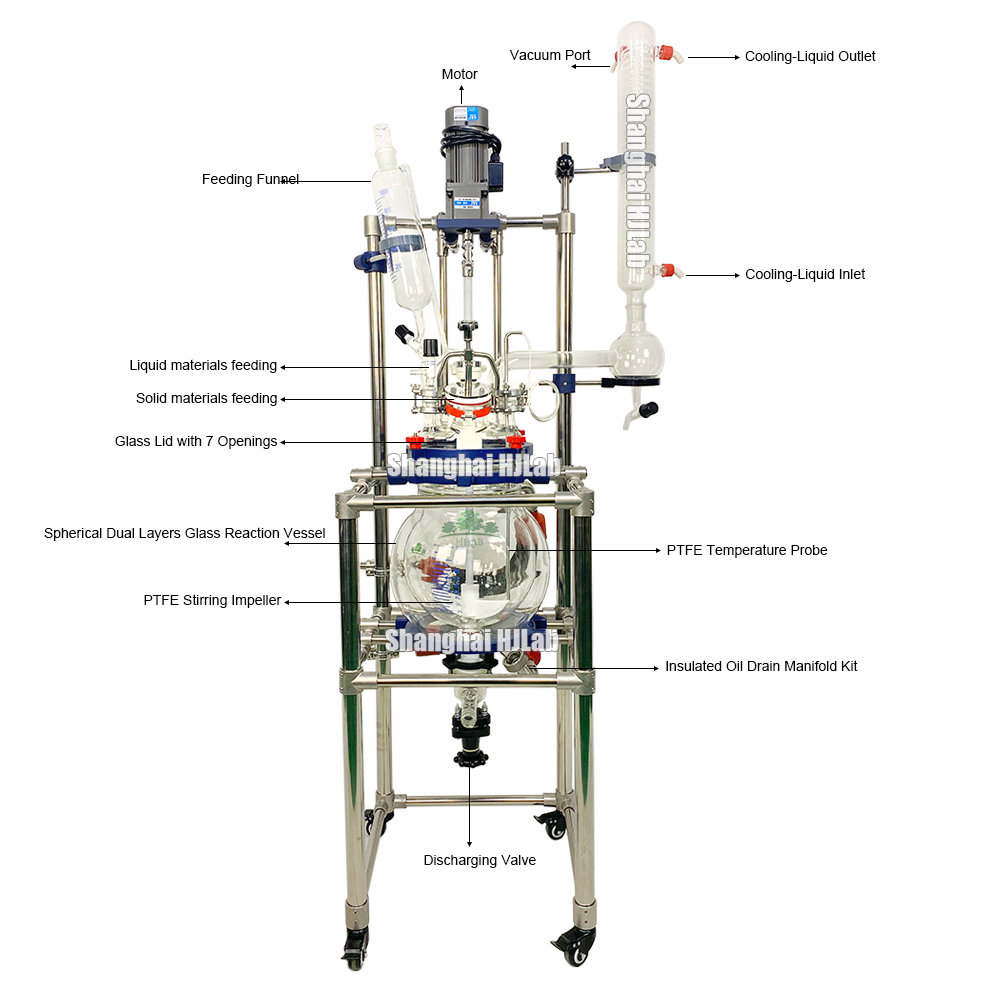

  • Round-Bottom Jacketed Spherical Glass Reactor


    • Double Layer Spherical Glass Reaction Vessel with 5L, 10L, 20L, 30L Capacity

    • Constant-Pressure Glass Liquid Feeding Funnel with PTFE Metering Valve
  •
    • Dual-Layers Cooling Coils Condenser with Glass Dispenser (Can reflux to reaction vessel, also can collect into the external receiving flask)
  •
    • Glass Lid with 7 Openings (Accept customized request)
  •

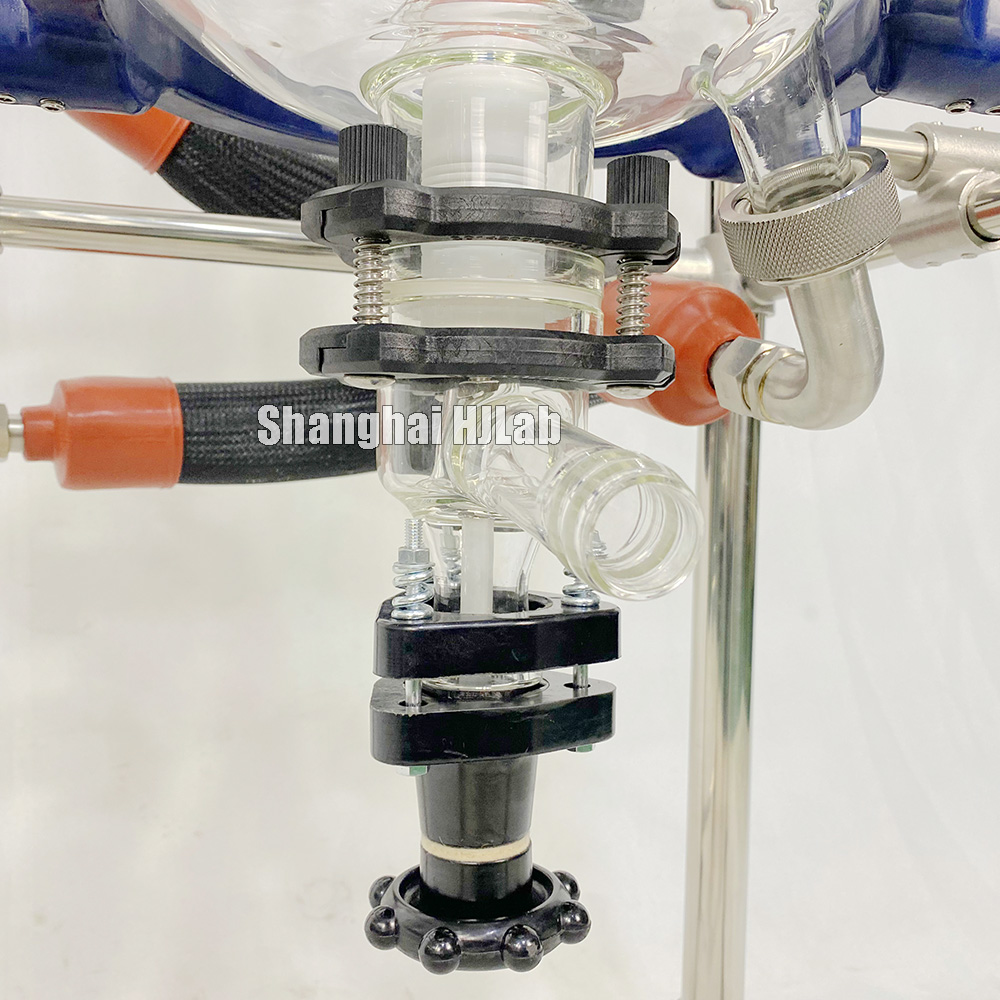

    • Zero-Dead Space Discharging PTFE Valve
  •
    • Stainless Steel Supporting Frame with Casters





  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3



Optional: Transparent-Color

Optional: Brown-Color

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L



Optional: Vertical Baffles inside of the vessel

Optional: Insulation Jacket

Optional: Heating Insulation Jacket

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Ring Baffles without the Thermal Jacket (5L ~ 200L)

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Condenser

Cooling Coil Condenser (0.2 ~ 2 m²)

Condensation Receiving Flask: none or 2L ~ 100L or Multiple Flasks

Totally Reflux to Reaction Vessel or Receiving Flask

Dropping Feeding Funnel

Dropping Feeding Funnel with Metering Valve and Equalizing Arm



Optional: 2L, 5L, 10L, 20L

Optional: Double Jacketed Feeding Funnel with Stirring

Optional: Peristaltic Pump

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



7 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)    60℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz



  • Turnkey Package


Jacketed Glass Reactor + Rotary Evaporator + Turnkey Package Solution Provider

Jacketed Glass Reactor with Turnkey Package: Heating Circulator, Recirculating Chiller, Vacuum Pump and Dynamic Temperature Controller TCU
