Pilot Scale Jacketed Glass Reactor with Ultrasonic Dispersion and PTFE Filtration and Peristaltic Pump Automatic Feeding

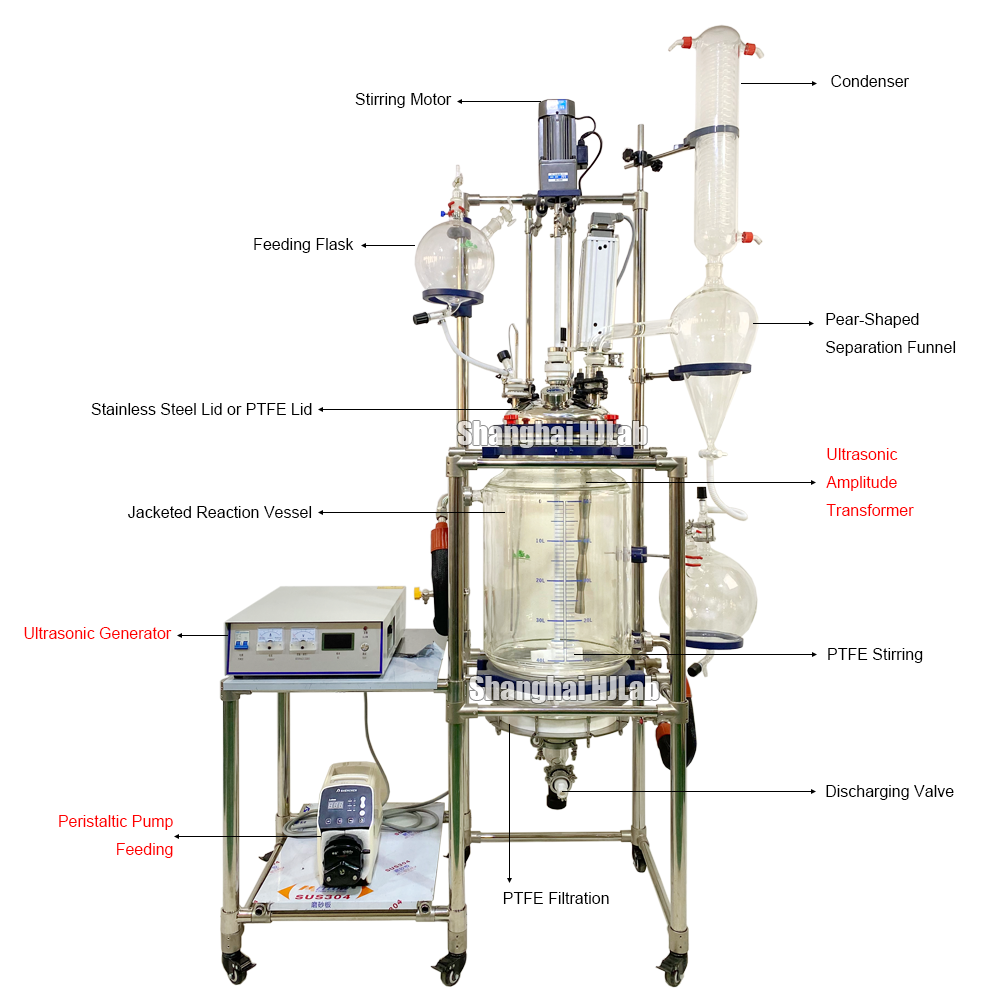

Jacketed Glass Reacion Vessel and Stainless Steel Lid with 7 openings Integrated Ultrasonic Dispersion and Emulsification Pear-Shaped Glass Dispenser PTFE Surfaced PT100 Temperature Probe PTFE Spray Cleaning inside of Glass Reaction Vessel Nutsche Stirring Filter with PTFE Filtration Peristaltic Pump Automatic Feeding PTFE Stirring Sealing with Ceramic Bearing, No debris during stirring
Capacity
5L
10L
20L
30L
50L
80L
100L
Glass Layer
Dual Layer
PTFE Filtration
Required
No need
Ultrasonic
20 KHz Ultrasonic Frequency

Pilot Scale Jacketed Glass Reactor with Ultrasonic Dispersion and PTFE Filtration and Peristaltic Pump Automatic Feeding

Pilot Scale Jacketed Glass Reactor with Ultrasonic Dispersion and PTFE Filtration and Peristaltic Pump Automatic Feeding



  • Pilot Scale Jacketed Glass Reactor with Ultrasonic Dispersion and PTFE Filtration and Peristaltic Pump Automatic Feeding


    • Jacketed Glass Reaction Vessel and Stainless Steel Lid with 7 Openings

    • Integrated Ultrasonic Dispersion and Emulsification
  •
    • Pear-Shaped Glass Dispenser
  •
    • PTFE Surfaced PT100 Temperature Probe
  •
    • PTFE Spray Cleaning inside of Glass Reaction Vessel
  •
    • Nutsche Stirring Filter with PTFE Filtration
    • Peristaltic Pump Automatic Feeding
    • PTFE Stirring Sealing with Ceramic Bearing. No Debris during Stirring



  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3



Optional: Transparent-Color

Optional: Brown-Color

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L



Optional: Vertical Baffles inside of the vessel

Optional: Insulation Jacket

Optional: Heating Insulation Jacket

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Ring Baffles without the Thermal Jacket (5L ~ 200L)

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Condenser

Cooling Coil Condenser (0.2 ~ 2 m²)

Condensation Receiving Flask: none or 2L ~ 100L or Multiple Flasks

Totally Reflux to Reaction Vessel or Receiving Flask

Dropping Feeding Funnel

Dropping Feeding Funnel with Metering Valve and Equalizing Arm



Optional: 2L, 5L, 10L, 20L

Optional: Double Jacketed Feeding Funnel with Stirring

Optional: Peristaltic Pump

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



7 Openings or more:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

9) (More Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)    60℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz



  • Turnkey Package




Jacketed Glass Reactor + Rotary Evaporator + Turnkey Package Solution Provider

Jacketed Glass Reactor with Turnkey Package: Heating Circulator, Recirculating Chiller, Vacuum Pump and Dynamic Temperature Controller TCU
