Hydrothermal Synthesis Reactor with PTFE PPL Liner and Explosion Proof Design
Hydrothermal Synthesis Reactor with PTFE PPL Liner and Explosion Proof Design

Hydrothermal Synthesis Reactor with PTFE PPL Liner and Explosion Proof Design

Hydrothermal Synthesis Reactor with PTFE PPL Liner and Explosion Proof Design Working Pressure within 8MPa, PTFE Liner Working Temperature: <=220°C, PPL Liner Working Temperature: <=260C
$87.00 USD $0.00 USD
Capacity
25ml
50ml
100ml
150ml
200ml
250ml
300ml
500ml
Explosion Proof
Required
Liner Materials
PTFE
PPL
Quantity
Only 99 left

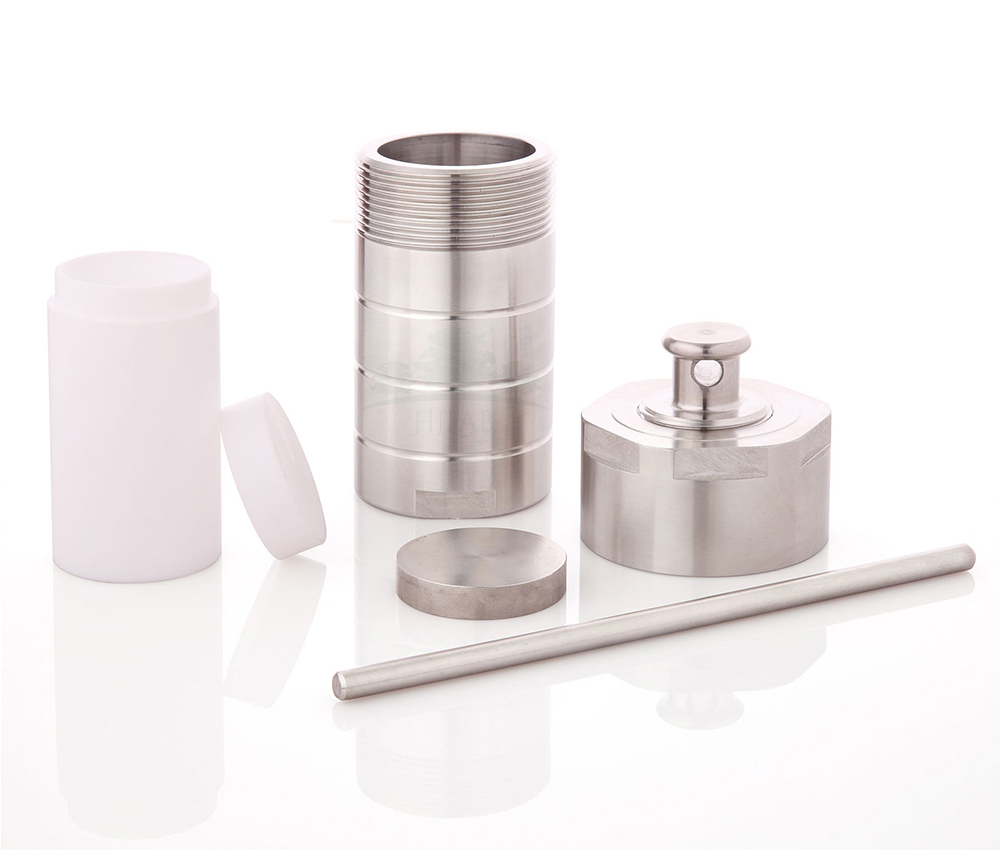

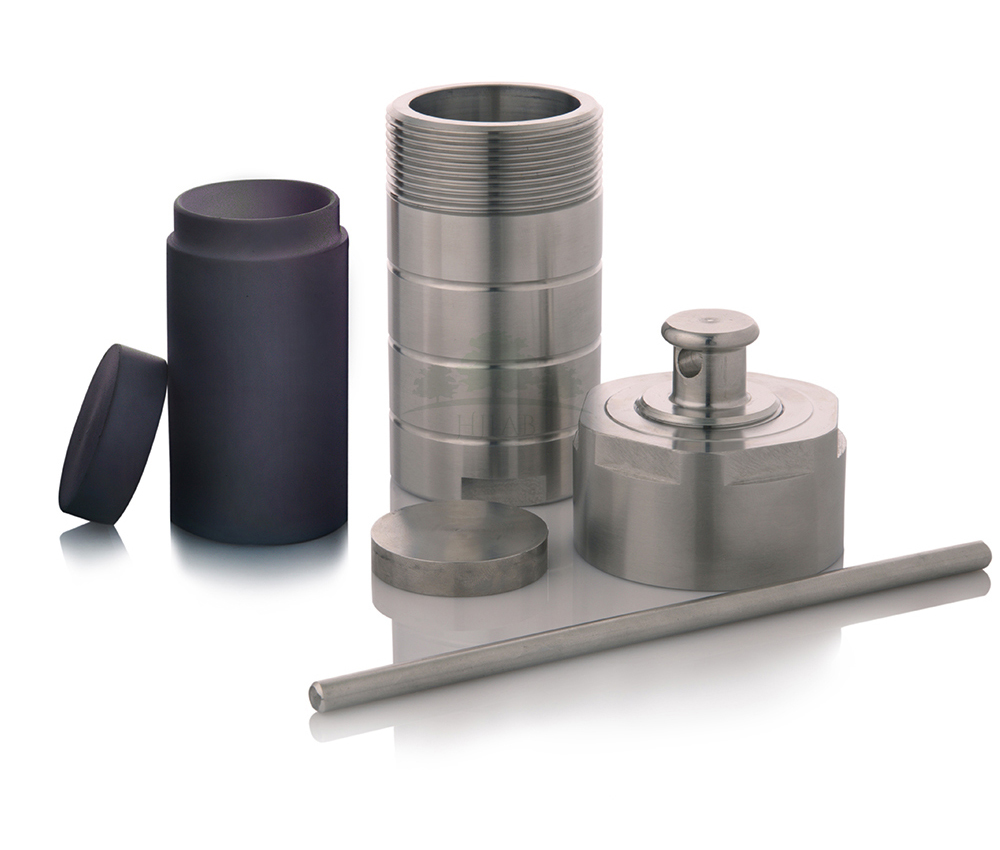

PTFE Liner PPL Liner



  • Hydrothermal Synthesis Reactor

This hydrothermal synthesis reactor is known as polymerization reactor.  This product is a closed container designed for digesting samples which are hardly dissolved by normal ways. It also can be used as a synthesis reactor. It can dissolve insoluble substances fast by using strong acids or strong alkalis in a tank amidst high temperature and high pressure, airtight environment.

The Hydrothermal Autoclave Reactor is used to carry hydrothermal reactions at high pressure and high temperature. The hydrothermal synthesis reactor generally comes in two varieties; the first is Polytetrafluoroethylene (PTFE) or Teflon lined hydrothermal autoclave reactors and the second is a PPL (polyphenylene polymer) lined autoclave. The hydrothermal reactor is mainly made up of two parts; outer high-quality stainless-steel jacket and inner Teflon liner or Teflon chamber. In the Teflon-lined autoclave, the reaction is carried out at a maximum 220-degree Celsius, while the safe temperature is 200-degree Celsius. The PPL (polyphenylene polymer) lined reactor used for the reaction operates at higher temperature, where the safe temperature will be 260-degree Celsius and the maximum operating temperature is 280-degree Celsius. This product is extensively used in scientific laboratories, research and development labs, institutional organizations, quality analysis sections in industries etc.




  • Specifications

Hydrothermal Synthesis Reactor

25 ml

50 ml

100 ml

200 ml

300 ml

500 ml

Reaction Vessel Materials

SUS304

Liner Materials

PTFE or PPL

Overall Height (mm)

115

139

157

193

210

228

Reaction Vessel Thickness (mm)

6

6

6.5

8.5

9.5

10

Liner Height (mm)

60

81.5

96.5

124

127

150

Liner Inner Diameter (mm)

33

40

49

63

75

84

Liner Thickness (mm)

4.5

4.6

5.6

7

8

8.5

Weight (KG)

1

1.6

2.4

5

6.5

8.2

Working Pressure

≤8 MPa  (Design Pressure ≤12MPa)

Working Temperature

PTFE: 220°C     PPL: 260°C

Accept Any Customized Requirements!
