Highly Dynamic Temperature Control System with Refrigerated Heating Circulator Recirculating Coolers
Highly Dynamic Temperature Control System with Refrigerated Heating Circulator Recirculating Coolers

Highly Dynamic Temperature Control System with Refrigerated Heating Circulator Recirculating Coolers

HJLab Dynamic Temperature Control Systems (Heating and Cooling Circulators) are predestined for applications in process and chemical engineering, such as temperature control of reactors, autoclaves, miniplant/pilot systems, reactor blocks and calorimeters.
$0.00 USD $0.00 USD
Quantity
Only 99 left

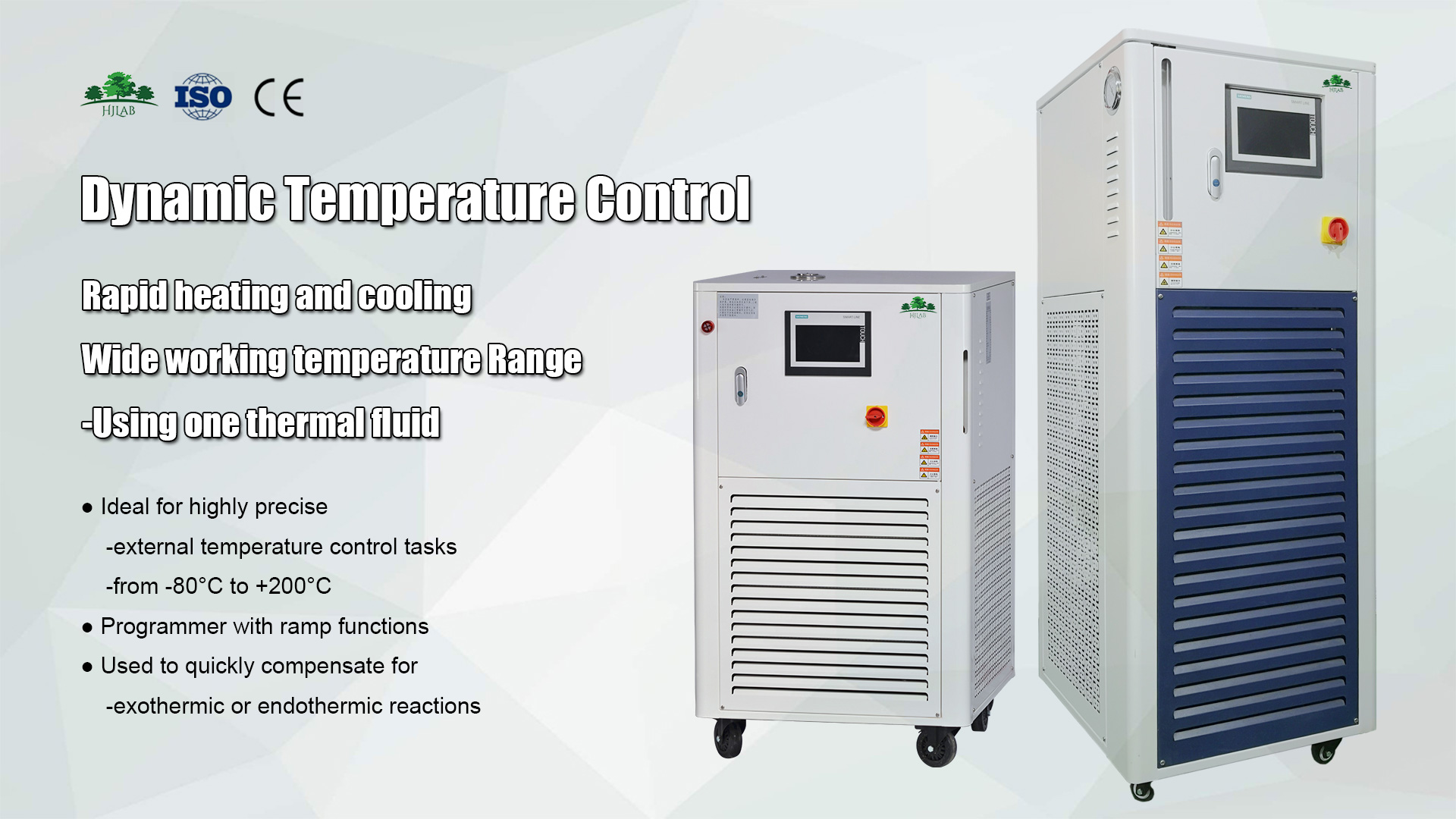

Dynamic Temperature Control System
Heating and Cooling Circulator
with

5L ~ 500L Reservoir Capacity
-80°C, -40°C, -20°C to +200°C,+300°C

Highly Dynamic Temperature Control System with Refrigerated Heating Circulator Recirculating Coolers

  • HJLab Highly Dynamic Temperature Control System

HJLab Dynamic Temperature Control Systems (Heating and Cooling Circulators) are predestined for applications in process and chemical engineering, such as temperature control of reactors, autoclaves, miniplant/pilot systems, reactor blocks and calorimeters.

HJLab Dynamic Temperature Control Systems with the unique thermodynamics provide highly accurate and reproducible results, guaranteeing the shortest heating and cooling times and a wide temperature range without fluid change.

Environmentally and economically HJLab Dynamic Temperature Control System stand out, offering natural refrigerants and an efficient energy management system for reduced operating costs.

Highly Dynamic Temperature Control System with Refrigerated Heating Circulator Recirculating Coolers

  • Features

□ Precise and reproducible temperature control results
□ Fast heating and cooling rates
□ Wide temperature ranges with no fluid change
□ 7'' touchscreen and comfortable menu navigation
□ Efficient circulation pump
□ USB, Ethernet and RS232 interfaces
□ Efficient operation saves working time and operating costs
□ Proven functionality for the process industry
□ Programmer with ramp functions
□ Quickly compensate for exothermic or endothermic reactions

Highly Dynamic Temperature Control System with Refrigerated Heating Circulator Recirculating Coolers
(World-Famous Refrigeration Components)


Highly Dynamic Temperature Control System with Refrigerated Heating Circulator Recirculating Coolers

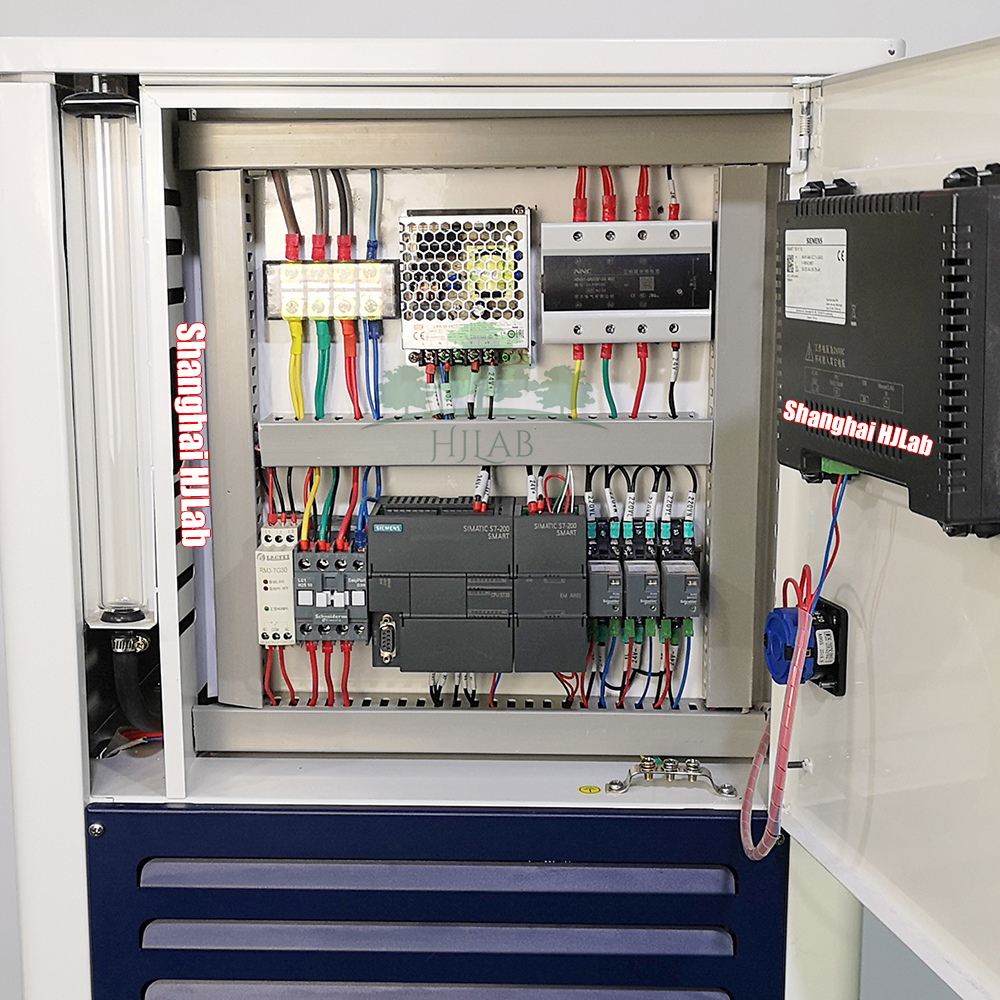

(Schneider or Other Famous Brands Electrical Accessories)


Highly Dynamic Temperature Control System with Refrigerated Heating Circulator Recirculating Coolers

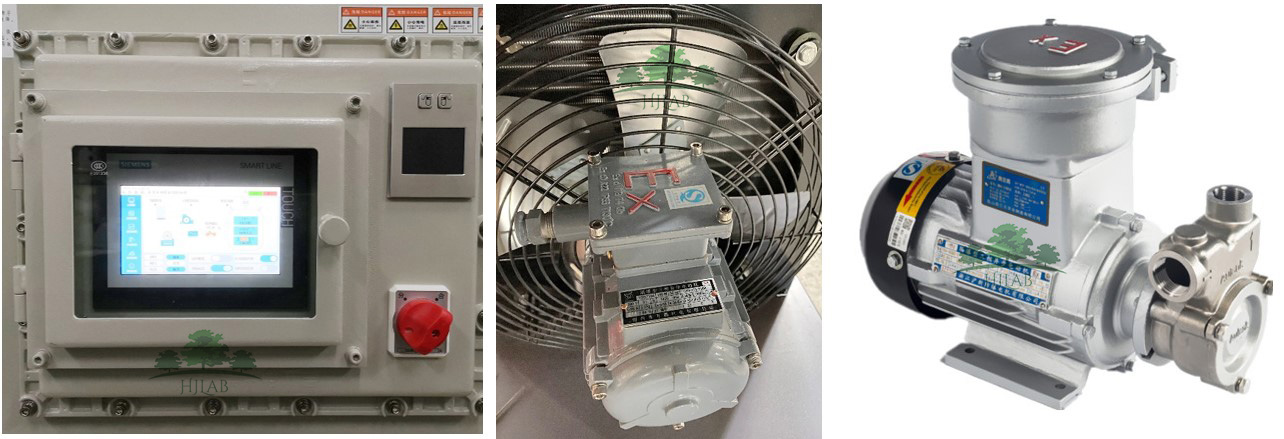

(Explosion Proof Design: Optional)

Highly Dynamic Temperature Control System with Refrigerated Heating Circulator Recirculating Coolers


  • Specifications

Bring More Values to You
Model: Ex-GD-(ExpansionVesselCapacity)-(200,300)-(20,40,80)-Ai

Model Explaination:

Ex: Explosion proof design  (optional)
GD: Product series number
Expansion Vessel Capacity: 5 ~ 500 liter
200,300: Maximum outlet temperature
20,40,80: Lowest outlet temperature  (subzero)
A: Air-cooled cooling machine  (Water-Cooled is optional)
i: 7'' touchscreen operation, Program with ramp temperature control
   Temperature Curve, Control Outlet or Materials Temperature

Temperature Range
-20°C, -40°C, -80°C to +200°C, +300°C

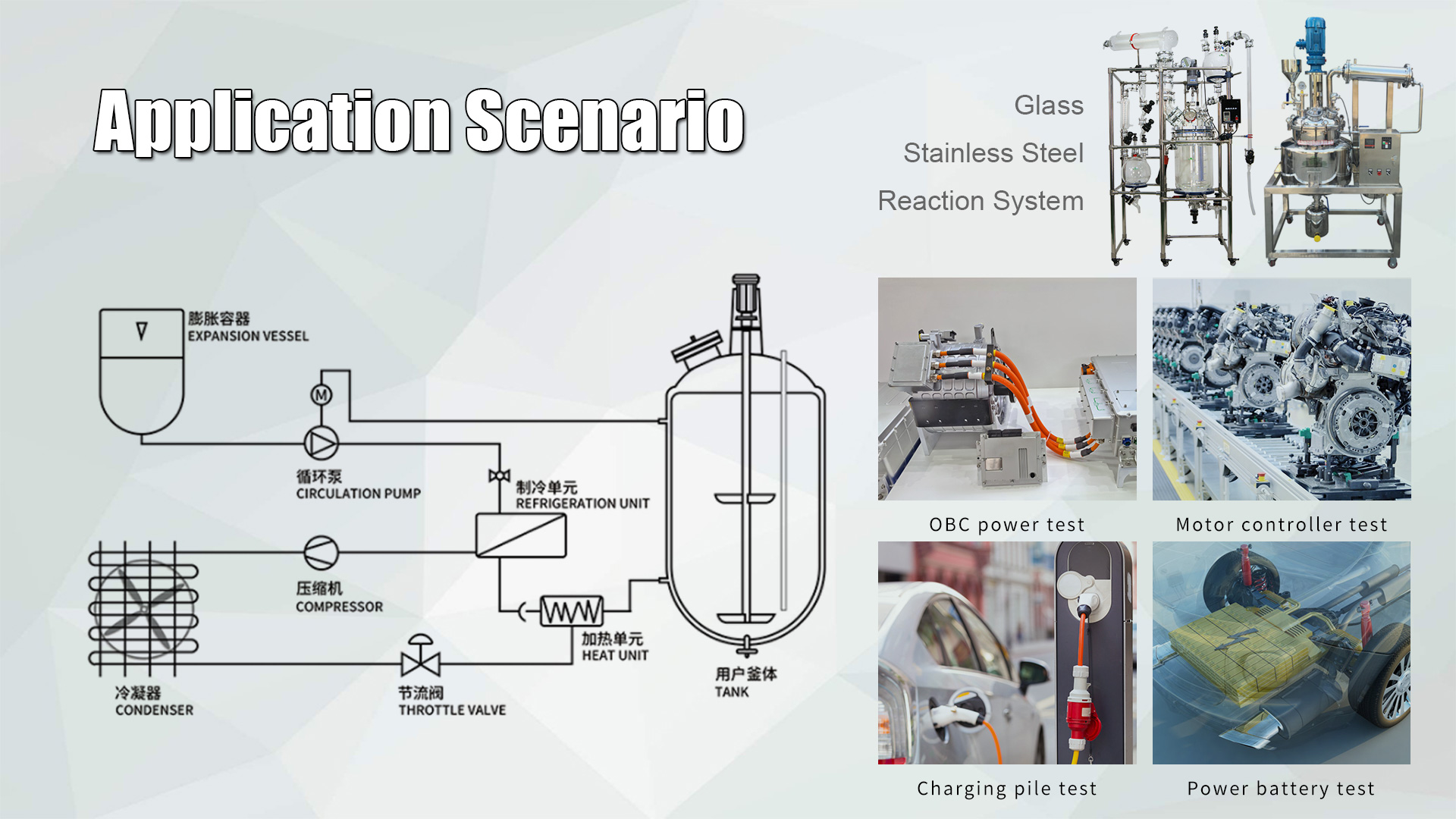

Working with
3rd-party container
(Reaction system, OBC Power Testing, Motor Controller Testing)
(Charging Pile Testing, Power Battery Testing)
Temperature Stability
+/- 0.1°C (Control outlet heat-transfer oil)
+/- 0.5°C (Control materials temperature inside of 3-rd party container)
Temperature Control
PID, PT100
Temperature Control Mode
1) Control outlet temperature
2) Control materials temperature (dynamic outlet temperature)
Heating Power
Based on Expansion Vessel Capacity and 3rd-Party Container Capacity:
5L: 3000 Watts
10L: 4500 Watts
20L: 6000 Watts
40L: 9000 Watts
100/200L: 12,000 ~ 18,000 Watts
Bigger Capacity: (Customized)
Cooling Capacity
Based on Expansion Vessel Capacity and 3rd-Party Container Capacity:

-20°C:
   5L: 2475 ~ 600 W
   10L: 5475 ~ 900 W
   20L: 10500 ~ 900 W
   40L: 15,330 ~ 1600 W
   100L: 25,000 ~ 8000 W
   200L: 39,375 ~ 8,285 W
   Bigger Capacity: (Customized)

-40°C:
   5L: 2800 ~ 650 W
   10L: 7300 ~ 900 W
   20L: 12,775 ~ 850 W
   40L: 15,330 ~ 900 W
   100L: 38,463 ~ 1,627 W
   200L:  40,375 ~ 5,200 W
   Bigger Capacity: (Customized)
Cooling Machine
Air-Cooled (Water-Cooled is optional)
Refrigerant
Honeywell Solstice N40(R-448A)       (R404A is abandoned)
Circulation Pump
Power: 180 ~ 750 W
Pump Flow: 20 ~ 60L/min
Pump Lift: 8 ~ 60 m
Connection
PT100 Connection
USB device
RS232
Ethernet
Volume of Expansion Reservoir
5 ~ 500 liters
Permissible Viscosity
50 mm^2/s
Safety
Self-Diagnosis function;
Freezer overload protection;
High pressure switch;
Overload relay;
Thermal protection device;
Liquid low level protection;
High temperature protection;
Temperature fault protection;
Dimension
(Depends)
Power Supply
220V 380V 480V (50Hz/60Hz)
