Single Layer Glass Reaction Vessel with Stainless Steel Filtration Mesh and Stirring and Lifting Tilting Supporting Frame Design
Single Layer Glass Reaction Vessel with Stainless Steel Filtration Mesh and Stirring and Lifting Tilting Supporting Frame Design
Single Layer Glass Reaction Vessel with Stainless Steel Filtration Mesh and Stirring and Lifting Tilting Supporting Frame Design
Single Layer Glass Reaction Vessel with Stainless Steel Filtration Mesh and Stirring and Lifting Tilting Supporting Frame Design
Single Layer Glass Reaction Vessel with Stainless Steel Filtration Mesh and Stirring and Lifting Tilting Supporting Frame Design
Single Layer Glass Reaction Vessel with Stainless Steel Filtration Mesh and Stirring and Lifting Tilting Supporting Frame Design

Single Layer Glass Reaction Vessel with Stainless Steel Filtration Mesh and Stirring and Lifting Tilting Supporting Frame Design

Single Layer Glass Reaction Vessel. Stainless Steel Filtration Mesh. Stainless Steel Stirring Paddles. Lifting Tilting Supporting Frame Design.
$3,960.00 USD $0.00 USD
Capacity
5L
10L
20L
30L
50L
Supporting Frame
Glass Vessel Lifting and Tilting
Quantity
Only 0 left

D:\HJLab\产品资料\0产品资料\玻璃反应釜\宣传海报\2021-08-07

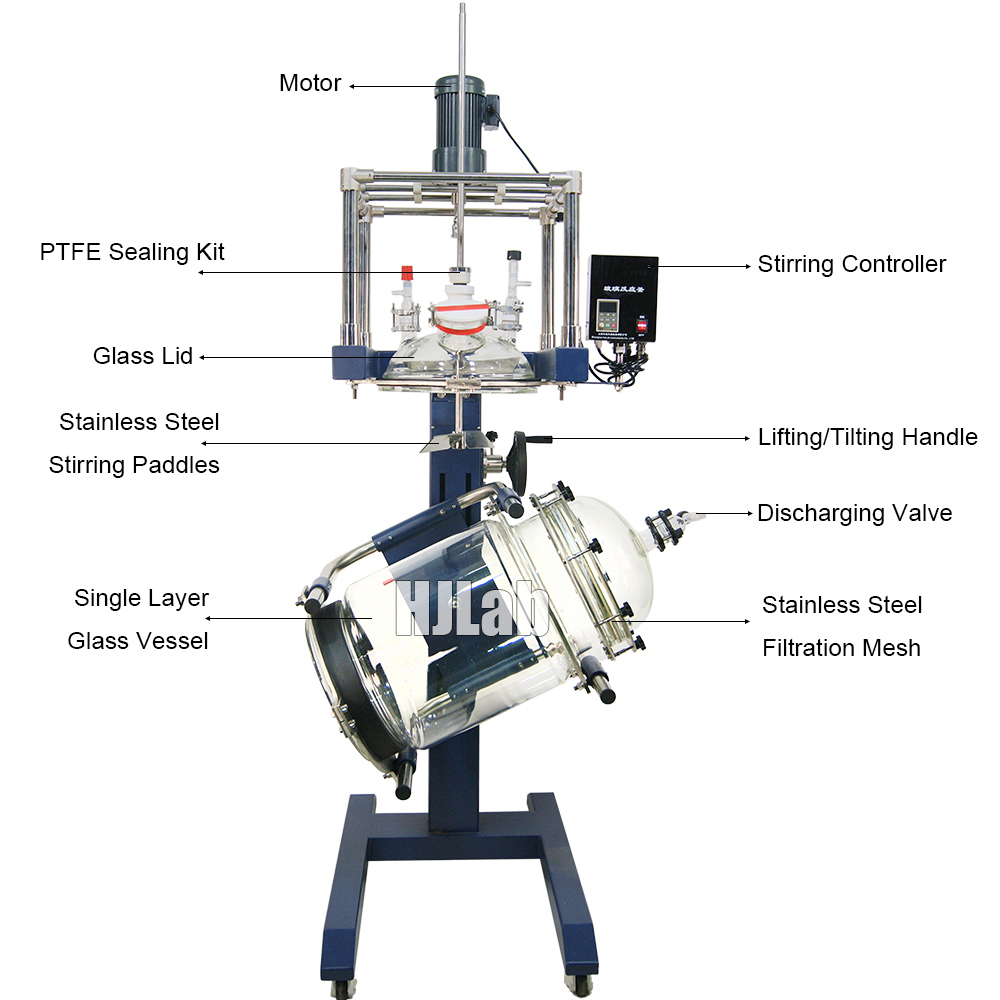

Peptide Synthesis Filtration Jacketed Glass Reactor for Crystallisation and Solid-Liquid Separation



  • Single Layer Glass Reaction Vessel with Stainless Steel Filtration Mesh and Stirring and Lifting Tilting Supporting Frame Design


    • Single Layer Glass Reaction Vessel

    • Stainless Steel Filtration Mesh
  •
    • Overhead Stirring Motor and VFD controller
  •
    • Stainless Steel Stirring Paddles.
  •
    • Glass Vessel Lifting Tilting Supporting Frame Design.
  •



  • Stainless Steel Filtration Mesh

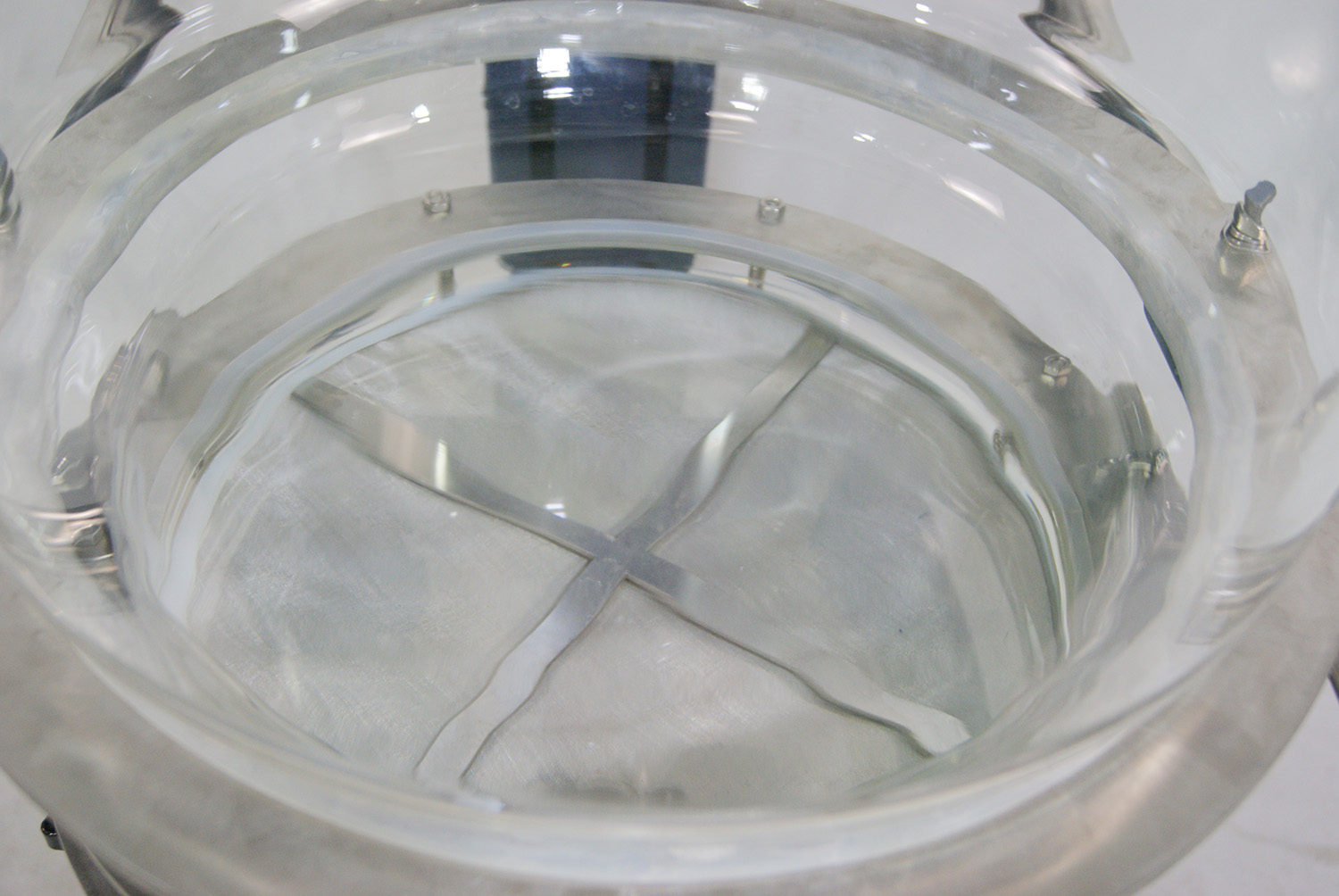

Single Layer Glass Vessel with Stainless Steel Filtration Mesh

  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L

Vertical Baffles inside of the vessel (Optional)

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Full Jacket Design (5L, 10L, 20L, 30L)

Filtration Area

ID215 Flange: 346 cm² (5L, 10L, 20L, 30L, 50L)

ID280 Flange: 615 cm² (30L, 50L, 80L, 100L)

ID400 Flange: 1,256 cm² (50L, 80L, 100L, 150L, 200L)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE



Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Optional: Magnetic coupling seal

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



7 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz



  • Turnkey Package


Full Jacketed Nutsche Filtering Glass Reactor with Stirring and PTFE Filtration and PH Online Measurement

Jacketed Glass Reactor + Rotary Evaporator + Turnkey Package Solution Provider

Jacketed Glass Reactor with Turnkey Package: Heating Circulator, Recirculating Chiller, Vacuum Pump and Dynamic Temperature Controller TCU
