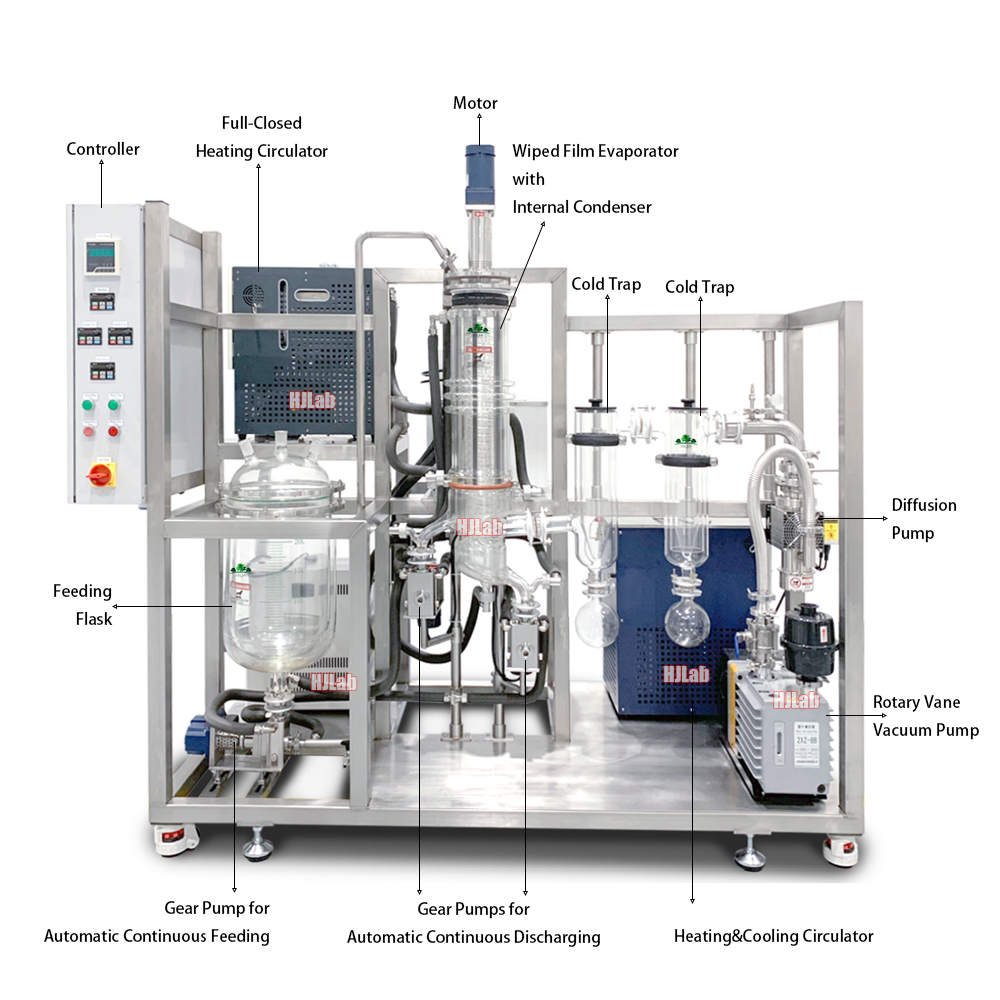

Fully Automatic Continuous Feeding Discharging Short Path Molecular Distillation Wiped/Thin Film Evaporator
Fully Automatic Continuous Feeding Discharging Short Path Molecular Distillation Wiped/Thin Film Evaporator

Fully Automatic Continuous Feeding Discharging Short Path Molecular Distillation Wiped/Thin Film Evaporator

Fully Automatic Continuous Feeding Discharging Short Path Molecular Distillation Wiped Film Evaporator

Short Path Molecular Distillation (Wiped/Thin Film Evaporator)

Molecular distillation is a type of short-path vacuum distillation, characterized by an extremely low vacuum pressure, 0.01 torr or below.

Fully Automatic Continuous Feeding Discharging Short Path Molecular Distillation Wiped/Thin Film Evaporator

It is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules for example vitamins and polyunsaturated fatty acids. This process is characterized by short term exposure of the distillate liquid to high temperatures in high vacuum (around 10^-4 mmHg) in the distillation column and a small distance between the evaporator and the condenser around 2 cm.

In molecular distillation, fluids are in the free molecular flow regime, i.e. the mean free path of molecules is comparable to the size of the equipment.


  • Customization Option

Feeding System
1) Single-Layer Glass Feeding Vessel

2) Jacketed Glass Feeding Vessel with Pre-Heating Circulator

3) Vessel related Capacity can be from 2L to 100L

4) Gear Pump or Peristaltic Pump for Automatic/Continuous Feeding
Main Distiller
1) Glass Distiller

2) Stainless Steel Distiller

3) Dual Jacketed Glass Barrel Diameter: 60 / 80 / 100 / 150 / 200 / 230 mm
External Condenser
1) 1 Stage: Dry Ice Cold Trap

2) 2 Stages:
     1st Stage: Cooling Coils Condenser
     2nd Stage: Dry Ice Cold Trap

3) 2 Stages:
     1st Stage: Cooling Coils Condenser
     2nd Stage: Dry Ice Cold Trap
Receiving System
1) Semi-Continuous Receiving Flasks (3L, 5L, 10L, 20L)

2) Full-Automatic-Continuous Collecting with Gear Pump (without any vacuum loss)
Vacuum System
1) Welch Vacuum Pump (Rotary Vane Vacuum Pump) (8L/S ~ 15L/Second)

2) Diffusion Pump
Temperature Controlling
1) Pre-Heating: Feeding Flask

2) Heating: Thermal Layer of Wiped Barrel

3) Cooling & Heating: Internal Condenser of Wiped Barrel

4) Cooling: External Cooling Coils Condenser
