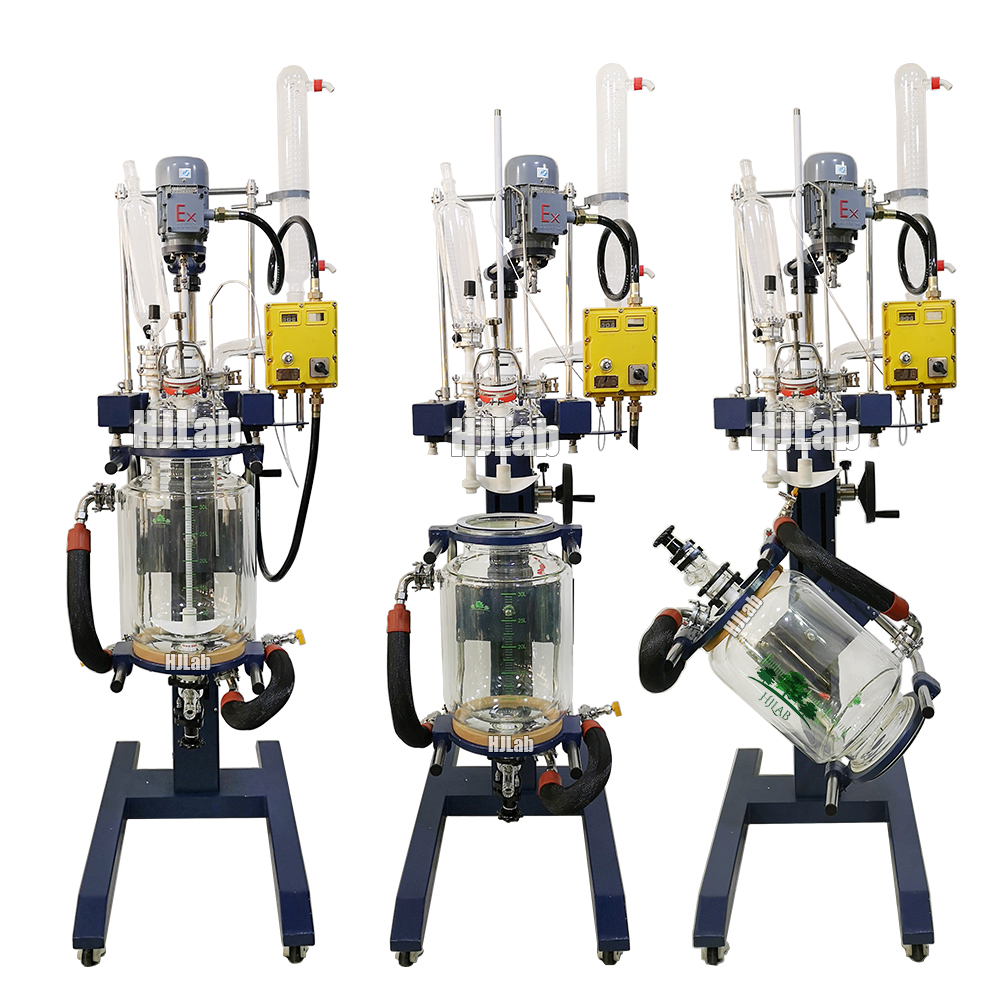

Explosion Proof Jacketed Glass Reactor with Tilting and Lifting Glass Reaction Vessel
Explosion Proof Jacketed Glass Reactor with Tilting and Lifting Glass Reaction Vessel
Explosion Proof Jacketed Glass Reactor with Tilting and Lifting Glass Reaction Vessel
Explosion Proof Jacketed Glass Reactor with Tilting and Lifting Glass Reaction Vessel
Explosion Proof Jacketed Glass Reactor with Tilting and Lifting Glass Reaction Vessel
Explosion Proof Jacketed Glass Reactor with Tilting and Lifting Glass Reaction Vessel

Explosion Proof Jacketed Glass Reactor with Tilting and Lifting Glass Reaction Vessel

Explosion Proof Motor Explosion Proof Variable Frequency Drive Controller Jacketed Glass Reactor Double Layer Glass Reaction Vessel can be tilting and lifting PTFE Spray Cleaning inside of Glass Reaction Vessel PTFE Anchor Stirring Paddles and PTFE temperature probe Heating Transfer Fluid Circulating Manifold Kits
Lifting Tilting Reactor
5L
10L
20L
30L
50L



Explosion Proof Jacketed Glass Reactor with Tilting and Lifting Glass Reaction Vessel

  • Explosion Proof Lifting Tilting Jacketed Glass Reactor


    • Explosion Proof Motor

    • Explosion Proof Variable Frequency Drive Controller
  •
    • Jacketed Glass Reaction Vessel
  •
    • 7 Openings Glass Lid
  •
    • PTFE Stirring Paddles and PTFE Temperature Probe
  •
    • Wetted Parts both are Glass and PTFE
    • AC Overhead Motor with Gear Reducer
    • Heating Transfer Fluid Circulating Manifold Kits
    • PTFE Spray Cleaning inside of Glass Reaction Vessel
    • Double Layer Glass Reaction Vessel can be Tilting and Lifting

Explosion Proof Jacketed Glass Reactor with Tilting and Lifting Glass Reaction Vessel



  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L

Vertical Baffles inside of the vessel (Optional)

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Full Jacket Design (5L, 10L, 20L, 30L)

Filtration Area

ID215 Flange: 346 cm² (5L, 10L, 20L, 30L, 50L)

ID280 Flange: 615 cm² (30L, 50L, 80L, 100L)

ID400 Flange: 1,256 cm² (50L, 80L, 100L, 150L, 200L)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE



Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Optional: Magnetic coupling seal

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



7 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz



  • Turnkey Package


Lifting Tilting Jacketed Glass Reactor with Dual Stages Condenser without Bottom Discharge Valve

Jacketed Glass Reactor + Rotary Evaporator + Turnkey Package Solution Provider

Jacketed Glass Reactor with Turnkey Package: Heating Circulator, Recirculating Chiller, Vacuum Pump and Dynamic Temperature Controller TCU
