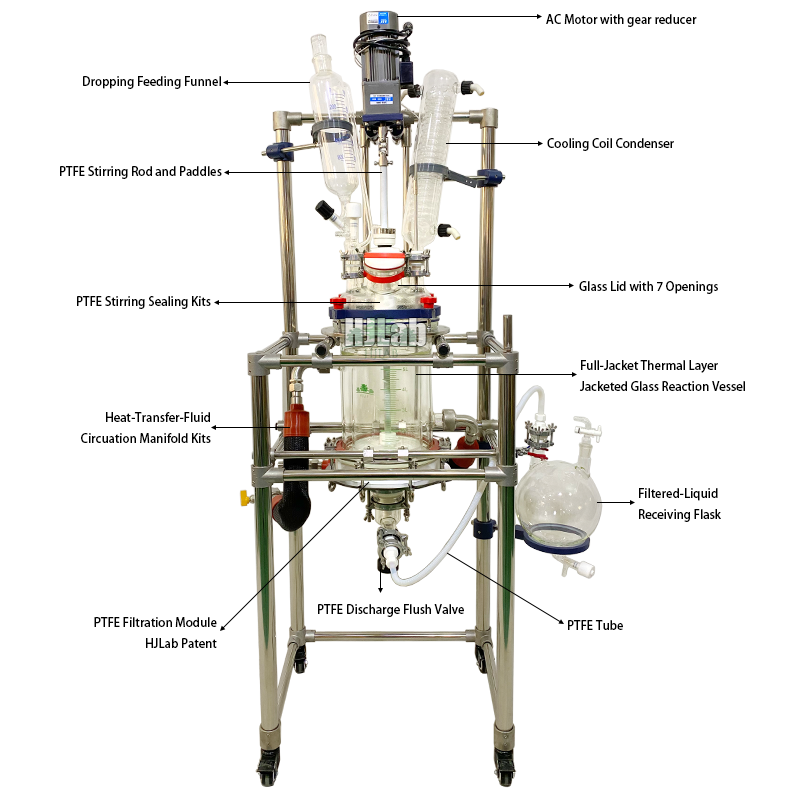

Chemical Synthesis Jacketed Glass Reactor with PTFE Nutsche Filtering for Peptide Crystallization Solid-Liquid Separation
- Full-PTFE Filtration without any other pollution
- Full-Jacketed Thermal Layer without any thermal transfer dead-space
- Heat-Transfer-Fluid Circulation Manifold Kits
- Glass Lid with 7 openings
- Cooling Coil Condenser Reflux Totally
- PTFE Stirring Sealing Kits
- PTFE Stirring Paddles
- PTFE Temperature Probe
- Constant-Pressure Dropping Feeding Funnel
- AC Overhead Motor with Gear Reducer
- Glass/PTFE Discharge Valve without any dead-space
-
General Specifications
|
Items |
Details |
|
Glass Materials |
High Borosilicate Glass 3.3 |
|
Wetted Parts |
Glass and PTFE |
|
Reaction Vessel Capacity |
5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L Vertical Baffles inside of the vessel (Optional) |
|
Thermal Jacket |
Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L) Full Jacket Design (5L, 10L, 20L, 30L) |
|
Filtration Area |
ID215 Flange: 346 cm² (5L, 10L, 20L, 30L, 50L) ID280 Flange: 615 cm² (30L, 50L, 80L, 100L) ID400 Flange: 1,256 cm² (50L, 80L, 100L, 150L, 200L) |
|
Filtration Micron |
Micron: 0.2μm to 200μm (depends on your materials) Filtration Materials: PTFE
Note: Not included by default |
|
Stirring Motor |
DC Brushless Motor, 50W, 100W, 150W AC Motor with Gear Reducer: 120W ~ 1500W Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W
Stirring Range: 50 ~ 600 RPM
Realtime Display: Mixing Speed, Materials Temperature |
|
Mixing Sealing |
PTFE + Mechanical Optional: Magnetic coupling seal |
|
Condenser |
Cooling Coil Condenser |
|
Dropping Feeding Funnel |
Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm |
|
Glass Lid |
Diameter: DN215, DN280, DN400 for your selection
8 Openings: 1) Dropping Feeding Funnel 2) Solid Materials Feeding 3) Stirrer 4) Liquid-Feeding 5) Temperature Probe 6) Condenser Reflux 7) Reserved (By default: Pressure Release) 8) Spray Cleaning or PH measurement (Optional) |
|
Stirring Impeller |
PTFE Anchor Type PTFE Pitched Paddle Type PTFE Frame Type |
|
Operating Temperature |
-90℃ to +230℃ |
|
ΔT - Thermal Shock Resistance |
90℃ (Double Wall) |
|
Operating Pressure |
Full Vacuum to Atmospheric Pressure |
|
Operating Jacket Pressure |
Up to +0.5 bar (0.05 MPa) |
|
Power Supply |
100V ~ 240V, 50Hz/60Hz |
-
