Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing
Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing
Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing
Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing
Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing
Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing

Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing

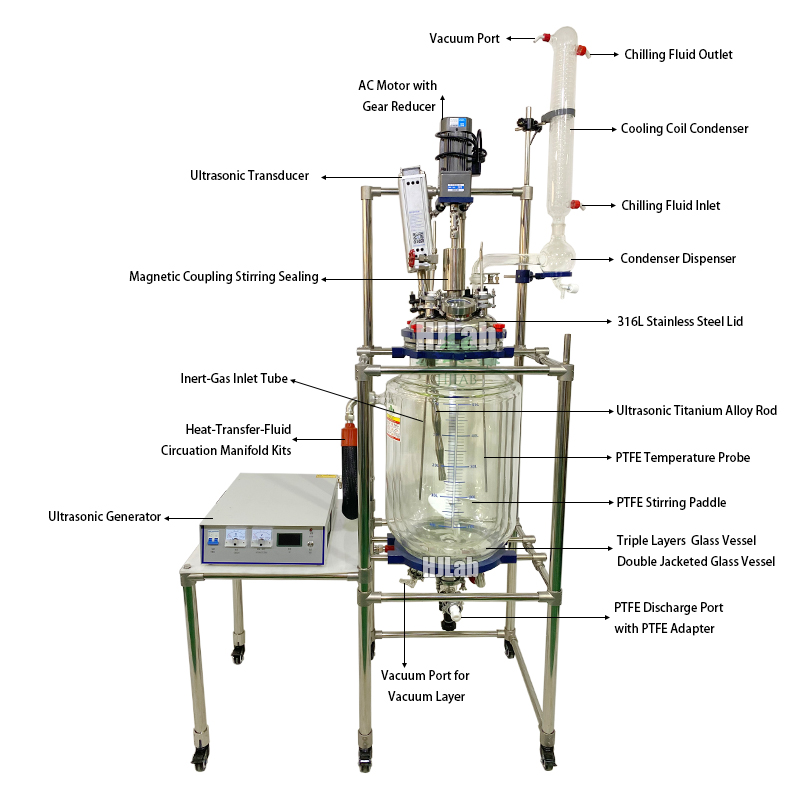

Triple Layers Glass Reaction Vessel Dual Jacketed Glass Reaction Vessel Ultrasonic Integration for Dispersion, Catalyzing and Emulsification Magnetic Coupling Stirring Sealing for higher-vacuum-level than PTFE mechanical sealing 316L Stainless Steel Lid with 7 openings AC overhead motor with Gear Reducer PTFE Temperature Probe PTFE Stirring Paddle Cooling Coil Condenser Inert-Gas Inlet Tube
Ultrasonic Design
Integrated
Magnetic Coupling Sealing
Integrated
Glass Vessel
Triple Layers
Glass Vessel Capacity
5L
10L
20L
30L
50L

Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing

  • Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing


    • Triple Layers (Dual Jacketed) Glass Reaction Vessel

    • Ultrasonic Integration for Dispersion, Catalyzing and Emulsification
  •
    • Magnetic Coupling Stirring Sealing for higher-vacuum-level than PTFE mechanical Sealing
  •
    • 316L Stainless Steel Lid with 7 Openings
  •
    • AC overhead motor with Gear Reducer
  •
    • PTFE Temperature Probe, PTFE Stirring Paddles
  •
    • Cooling Coil Condenser
  •
    • Inert-Gas Inlet Tube
  •
    • PTFE Spray to clean Inside of Glass Vessel
  •
    • Heating Transfer Fluid Recirculating Manifold Kits
  •
    • Glass/PTFE Discharge Valve without any dead-space



Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing



  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L

Vertical Baffles inside of the vessel (Optional)

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Full Jacket Design (5L, 10L, 20L, 30L)

Filtration Area

ID215 Flange: 346 cm² (5L, 10L, 20L, 30L, 50L)

ID280 Flange: 615 cm² (30L, 50L, 80L, 100L)

ID400 Flange: 1,256 cm² (50L, 80L, 100L, 150L, 200L)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE



Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Optional: Magnetic coupling seal

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



8 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz



  • More Pictures


Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing

Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing

Chemical Synthesis Double Jacketed Glass Reactor with Ultrasonic Dispersion and Magnetic Coupling Stirring Sealing
