- Chemical Resistant Anti-Corrosion Diaphragm Vacuum Pump
-
- Stable vacuum, adjustable pumping speed
- Complete chemical resistance
- Continuous working
- Small size and light weight
- Higher vacuum-level than Water Jet Aspirator Vacuum Pump
- Suitable for vacuum drying, distillation, rotary evaporator, glass reactor, evaporation, concentration, filtration, exaction.
- Specification

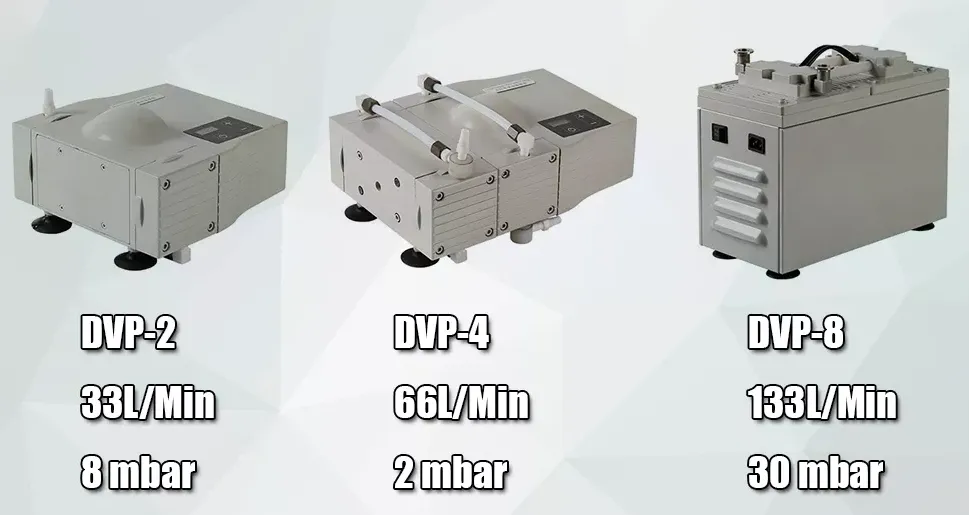

| Item | Model: DVP-2 | Model: DVP-4 | Model: DVP-8 |
| Pumping Speed |
2 m³/h 33 L/Min |
4 m³/h 66 L/Min |
8 m³/h 133 L/Min |
| Ultimate Vacuum Level | 8 mbar | 2 mbar | 30 mbar |
| Variable Frequency Drive for Motor RPM | 1300 ~ 1800 RPM | ||
| Pump Suction Port Quantity | 1 | 1 | 1 |
| Pump Power | 180 W | 360 W | 400 W |
| Dimension (W*D*H) | 242*280*150 mm | 385*242*170 mm | 375*200*310 mm |
| Weight | 10 KG | 17 KG | 20 KG |
| Components Materials |
Exhaust Valve Plate: FFKM Diaphragm: Sandwich PTFE Inlet/Outlet: PTFE Fittings: PTFE/PVDF Pump Chamber: PTFE-coated |
||
