Chemical Jacketed Glass Reactor with Distillation Evaporation Condenser Column and Dual Receiving Flask
Chemical Jacketed Glass Reactor with Distillation Evaporation Condenser Column and Dual Receiving Flask
Chemical Jacketed Glass Reactor with Distillation Evaporation Condenser Column and Dual Receiving Flask
Chemical Jacketed Glass Reactor with Distillation Evaporation Condenser Column and Dual Receiving Flask
Chemical Jacketed Glass Reactor with Distillation Evaporation Condenser Column and Dual Receiving Flask
Chemical Jacketed Glass Reactor with Distillation Evaporation Condenser Column and Dual Receiving Flask

Chemical Jacketed Glass Reactor with Distillation Evaporation Condenser Column and Dual Receiving Flask

Wetted Parts both are Glass and PTFE AC Induction Motor with Gear Reducer Constant Pressure Feeding Funnel 7 Openings Glass Lid Distillation/Evaporation Cooling Coil Condenser PTFE Stirring Paddles and PTFE Temperature Probe Dual Receiving Flask Zero dead space Discharge Valve Heating Transfer Fluid Circulating Manifold Kits
Jacketed Glass Vessel Capacity
1L
2L
3L
5L
10L
20L
30L
50L
100L
150L
200L

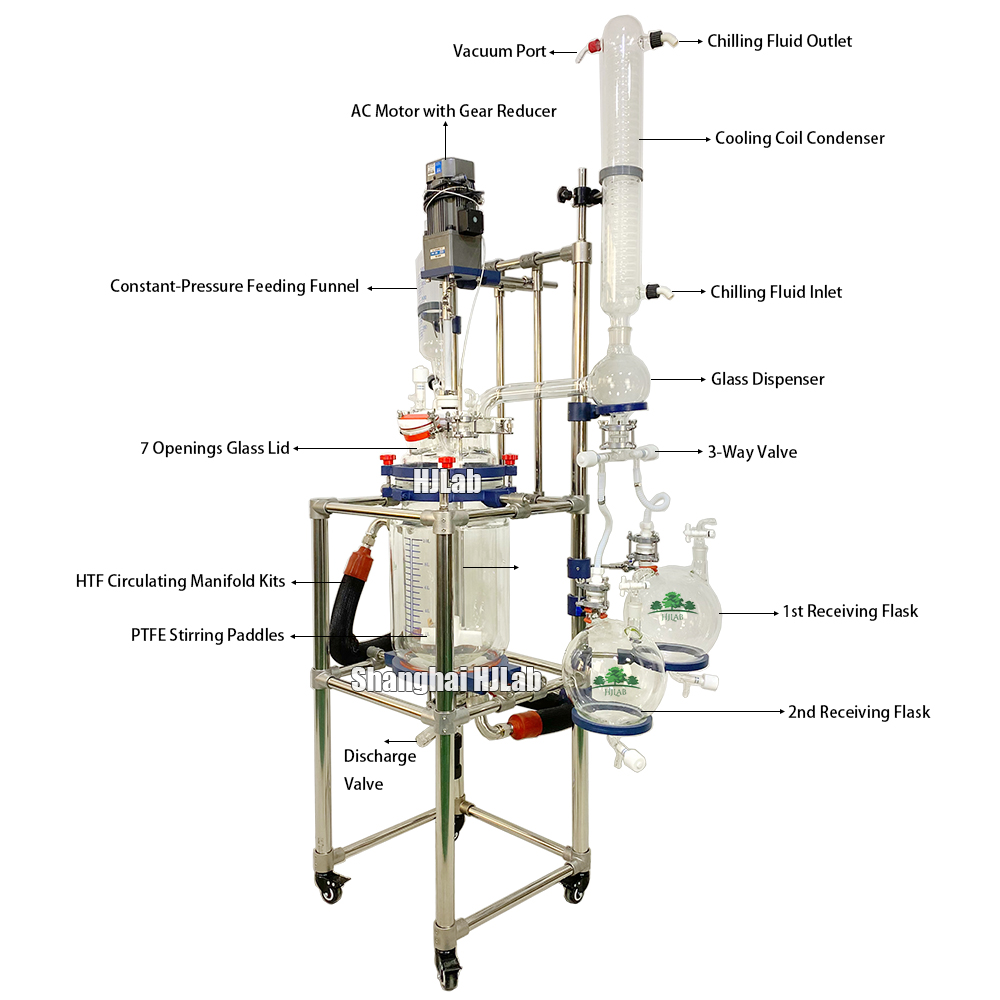

Chemical Jacketed Glass Reactor with Distillation Evaporation Condenser Column and Dual Receiving Flask

  • Chemical Jacketed Glass Reactor with Condenser Column and Dual Receiving Flask


    • Wetted Parts both are Glass and PTFE

    • AC Induction Motor with Gear Reducer
  •
    • Constant Pressure Feeding Funnel and Cooling Coil Condenser
  •
    • 7 Openings Glass Lid
  •
    • PTFE Stirring Paddles and PTFE Temperature Probe
  •
    • Dual Receiving Flask
    • Zero Dead Space Discharge Valve
    • Heating Transfer Fluid Circulating Manifold Kits

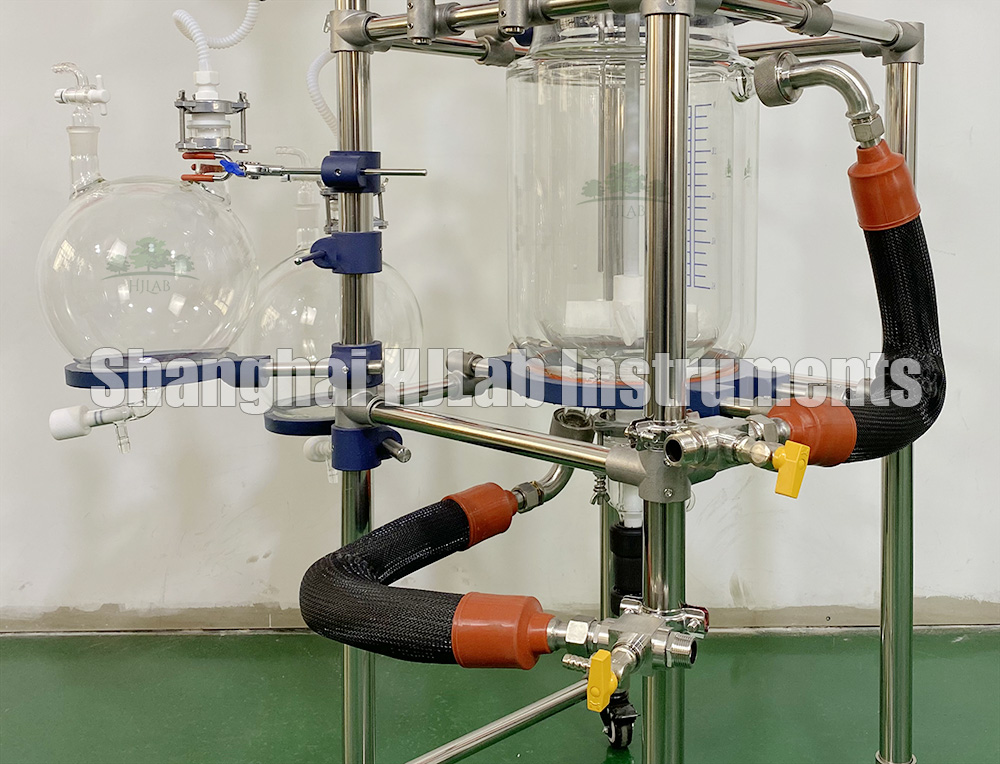

  • Dual Receiving Flask / HTF Circulating Manifold Kits


Chemical Jacketed Glass Reactor with Distillation Evaporation Condenser Column and Dual Receiving Flask



  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L

Vertical Baffles inside of the vessel (Optional)

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Full Jacket Design (5L, 10L, 20L, 30L)

Filtration Area

ID215 Flange: 346 cm² (5L, 10L, 20L, 30L, 50L)

ID280 Flange: 615 cm² (30L, 50L, 80L, 100L)

ID400 Flange: 1,256 cm² (50L, 80L, 100L, 150L, 200L)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE



Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Optional: Magnetic coupling seal

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



7 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz



  • Turnkey Package

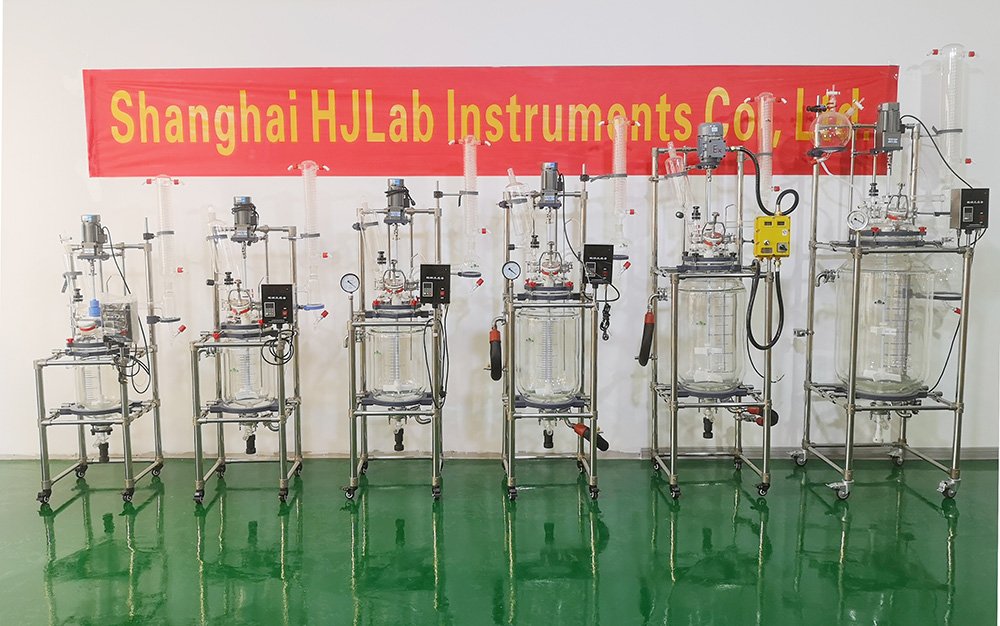

Full Jacketed Nutsche Filtering Glass Reactor with Stirring and PTFE Filtration and PH Online Measurement

Jacketed Glass Reactor + Rotary Evaporator + Turnkey Package Solution Provider

Jacketed Glass Reactor with Turnkey Package: Heating Circulator, Recirculating Chiller, Vacuum Pump and Dynamic Temperature Controller TCU
