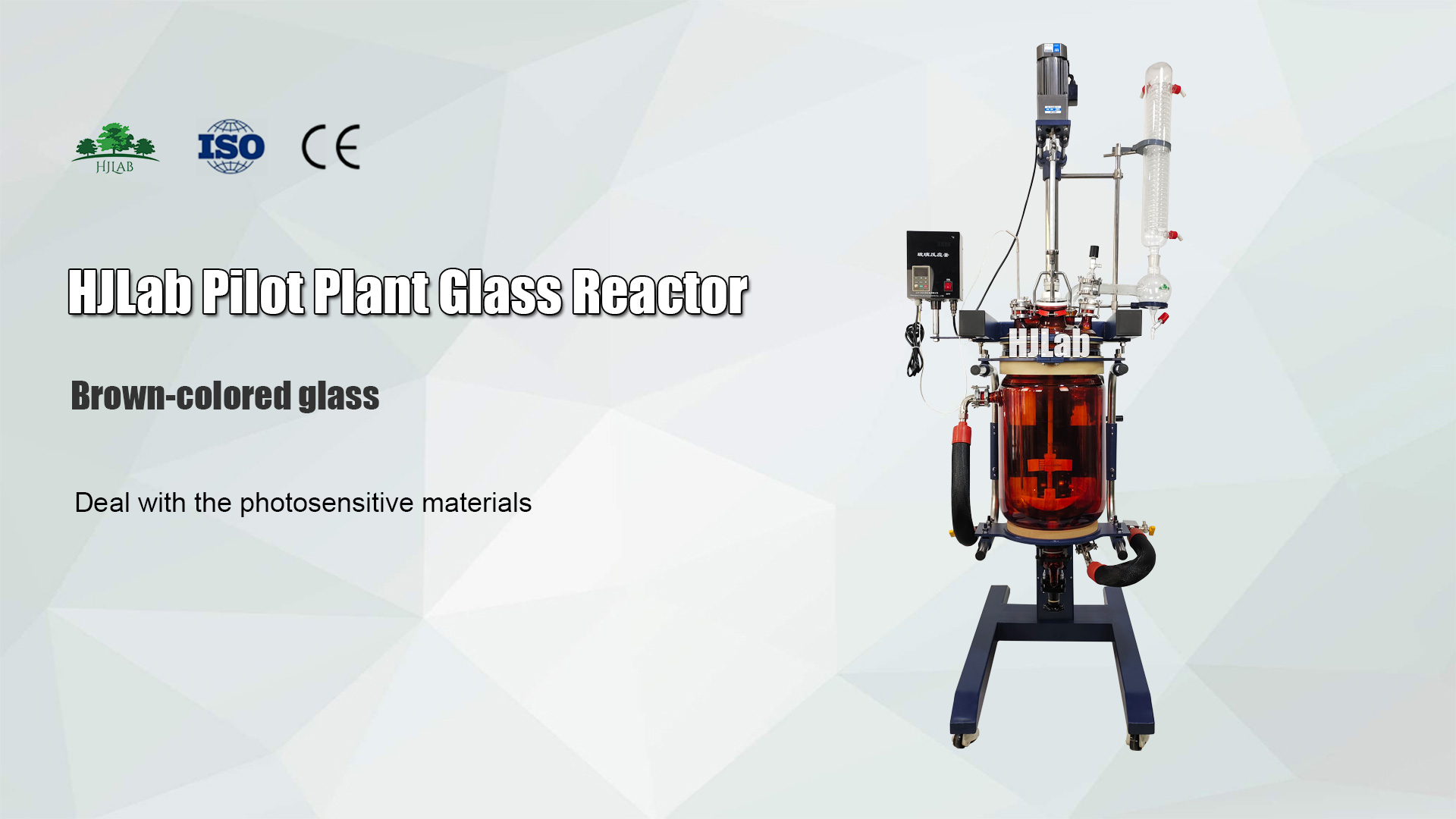

Brown Chemical Synthesis Jacketed Glass Reactor for dealing with Photosensitive Materials

Brown Glass Reactor for dealing with Photosensitive Chemical Materials Brown Jacketed Double Layer Glass Reaction Vessel Brown Glass Lid with 7 openings Brown Glass/PTFE Discharging Valve PTFE Spray Cleaning inside of Glass Reaction Vessel Cooling Coils Condenser with Condensated-Liquid Dispenser PTFE Anchor Stirring Paddle PTFE Stirring Sealing with Ceramic Bearing, No debris during stirring
Capacity
1L
2L
3L
5L
10L
20L
30L
50L
80L
100L
Supporting Frame
Glass Vessel Lifting and Tilting
Without Lifting and Tilting
Glass Layer
Single Layer
Dual Layer

Brown Chemical Synthesis Jacketed Glass Reactor for dealing with Photosensitive Materials

Brown Chemical Synthesis Jacketed Glass Reactor for dealing with Photosensitive Materials



  • Brown Chemical Synthesis Jacketed Glass Reactor for dealing with Photosensitive Materials


    • Brown Jacketed Double Layer Glass Reaction Vessel

    • Brown Glass Lid with 7 Openings
  •
    • Brown Glass/PTFE Discharge Valve
  •
    • PTFE Spray Cleaning inside of Glass Reaction Vessel
  •
    • Cooling Coils Condenser with Condenstaed-Liquid Dispenser
  •
    • PTFE Stirring Sealing with Ceramic Bearing. No Debris during Stirring



  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3



Optional: Transparent-Color

Optional: Brown-Color

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L



Optional: Vertical Baffles inside of the vessel

Optional: Insulation Jacket

Optional: Heating Insulation Jacket

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Ring Baffles without the Thermal Jacket (5L ~ 200L)

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Condenser

Cooling Coil Condenser (0.2 ~ 2 m²)

Condensation Receiving Flask: none or 2L ~ 100L or Multiple Flasks

Totally Reflux to Reaction Vessel or Receiving Flask

Dropping Feeding Funnel

Dropping Feeding Funnel with Metering Valve and Equalizing Arm



Optional: 2L, 5L, 10L, 20L

Optional: Double Jacketed Feeding Funnel with Stirring

Optional: Peristaltic Pump

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



7 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)    60℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz



  • Turnkey Package


Full Jacketed Nutsche Filtering Glass Reactor with Stirring and PTFE Filtration and PH Online Measurement

Jacketed Glass Reactor + Rotary Evaporator + Turnkey Package Solution Provider

Jacketed Glass Reactor with Turnkey Package: Heating Circulator, Recirculating Chiller, Vacuum Pump and Dynamic Temperature Controller TCU
