Agitated Nutsche Filtering Chemical Solid-Phase-Synthesis Jacketed Glass Reactor with Lifting and Tilting and Explosion Proof Design
Agitated Nutsche Filtering Chemical Solid-Phase-Synthesis Jacketed Glass Reactor with Lifting and Tilting and Explosion Proof Design
Agitated Nutsche Filtering Chemical Solid-Phase-Synthesis Jacketed Glass Reactor with Lifting and Tilting and Explosion Proof Design
Agitated Nutsche Filtering Chemical Solid-Phase-Synthesis Jacketed Glass Reactor with Lifting and Tilting and Explosion Proof Design
Agitated Nutsche Filtering Chemical Solid-Phase-Synthesis Jacketed Glass Reactor with Lifting and Tilting and Explosion Proof Design
Agitated Nutsche Filtering Chemical Solid-Phase-Synthesis Jacketed Glass Reactor with Lifting and Tilting and Explosion Proof Design

Agitated Nutsche Filtering Chemical Solid-Phase-Synthesis Jacketed Glass Reactor with Lifting and Tilting and Explosion Proof Design

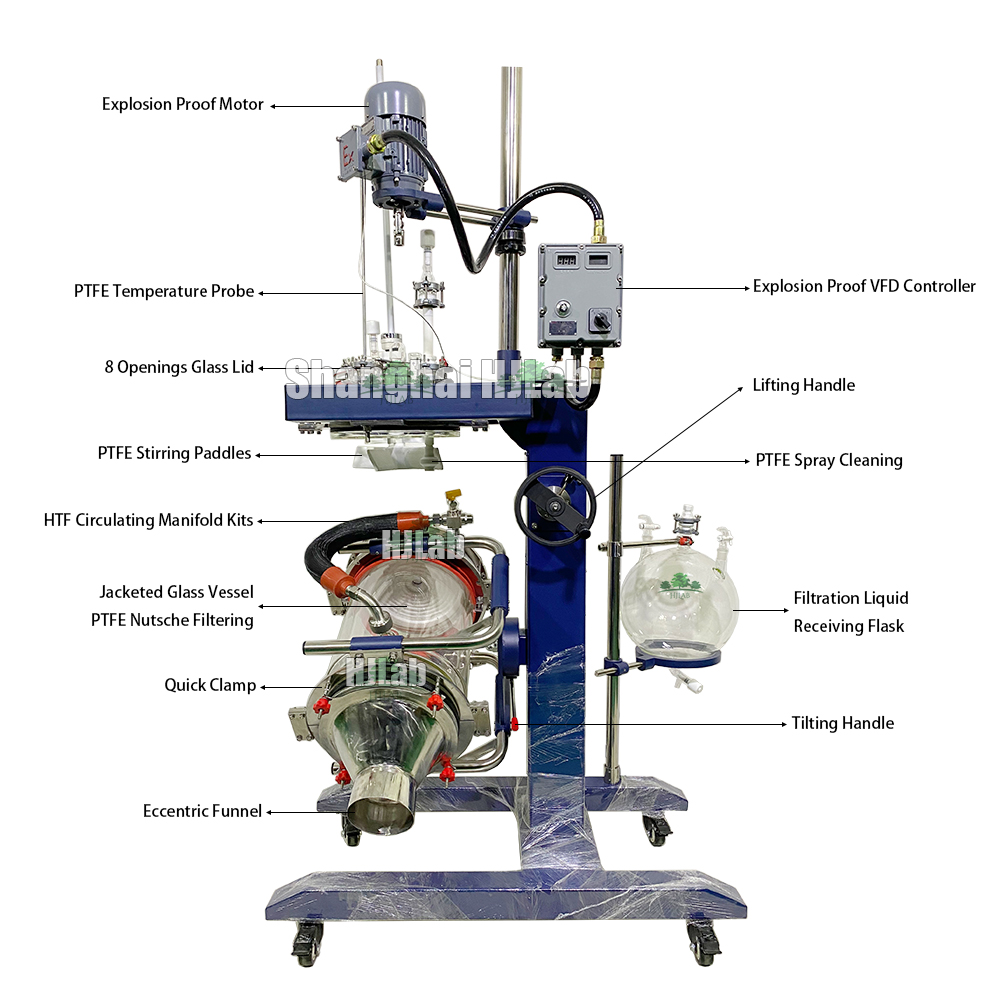

Explosion Proof Motor Explosion Proof Variable Frequency Drive Controller Full Jacket Thermal Layer, No any Thermal Dead Space. Full PTFE Filtration Module. No any other Pollution. 8 Openings Glass Lid PTFE Spray Cleaning Lifting and Tilting Operation. Easy to Operate. Eccentric Funnel. Easy to discharge. HTF Circulating Manifold Kits. No need to drain HTF while Lifting and Tilting Operation.
Lifting
Manual
Motorized
Tilting
Manual
Motor and Controller
Explosion Proof
Jacketed Glass Reaction Vessel
5L
10L
20L
30L
50L
PTFE Filtration Diameter
210mm
280mm
300mm
400mm

Agitated Nutsche Filtering Chemical Solid-Phase-Synthesis Jacketed Glass Reactor with Lifting and Tilting and Explosion Proof Design

  • Agitated Nutsche Filtering Chemical Solid-Phase-Synthesis Jacketed Glass Reactor with Lifting/Tilting/Explosion Proof Design


    • Explosion Proof Motor and Variable Frequency Drive Controller

  •
    • Full Jacket Thermal Layer. No any Thermal Dead Space.
  •
    • Full PTFE Filtration Module. No any Pollution.
  •
    • 8 Openings Glass Lid
  •
    • Wetted Parts both are Borosilicate Glass and PTFE

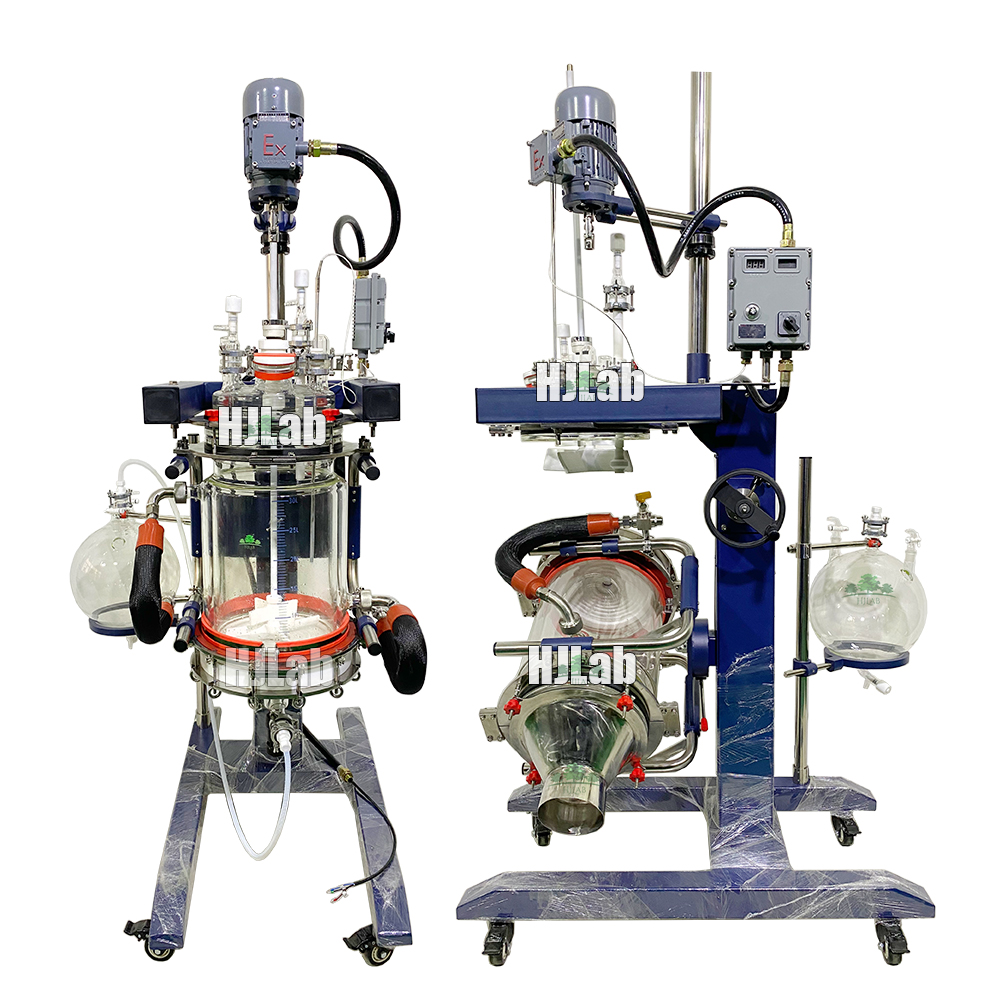

    • Lifting and Tilting Operation. Easy to Operate.
    • Heating Transfer Fluid Circulating Manifold Kits
    • Eccentric Funnel. Easy to Discharge
    • No need to drain HTF while Lifting and Tilting Operation

Agitated Nutsche Filtering Chemical Solid-Phase-Synthesis Jacketed Glass Reactor with Lifting and Tilting and Explosion Proof Design



  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L

Vertical Baffles inside of the vessel (Optional)

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Full Jacket Design (5L, 10L, 20L, 30L)

Filtration Area

ID215 Flange: 346 cm² (5L, 10L, 20L, 30L, 50L)

ID280 Flange: 615 cm² (30L, 50L, 80L, 100L)

ID400 Flange: 1,256 cm² (50L, 80L, 100L, 150L, 200L)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE



Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Optional: Magnetic coupling seal

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



7 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz



  • Turnkey Package


Lifting Tilting Jacketed Glass Reactor with Dual Stages Condenser without Bottom Discharge Valve

Jacketed Glass Reactor + Rotary Evaporator + Turnkey Package Solution Provider

Jacketed Glass Reactor with Turnkey Package: Heating Circulator, Recirculating Chiller, Vacuum Pump and Dynamic Temperature Controller TCU
