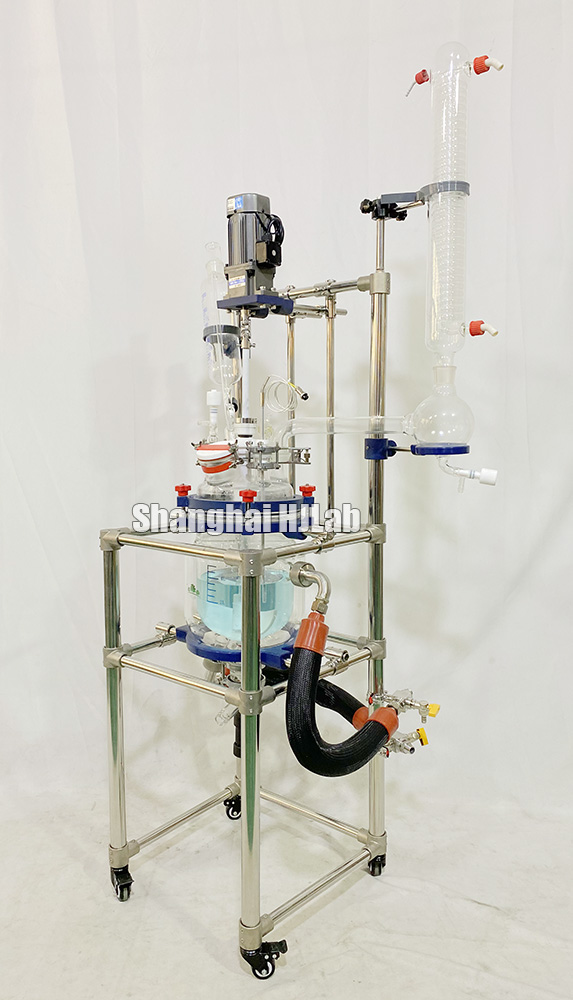

5L Jacketed Glass Reactor with Double Layer Reaction Vessel and HTF Circulating Manifold Kits
5L Jacketed Glass Reactor with Double Layer Reaction Vessel and HTF Circulating Manifold Kits
5L Jacketed Glass Reactor with Double Layer Reaction Vessel and HTF Circulating Manifold Kits
5L Jacketed Glass Reactor with Double Layer Reaction Vessel and HTF Circulating Manifold Kits
5L Jacketed Glass Reactor with Double Layer Reaction Vessel and HTF Circulating Manifold Kits
5L Jacketed Glass Reactor with Double Layer Reaction Vessel and HTF Circulating Manifold Kits

5L Jacketed Glass Reactor with Double Layer Reaction Vessel and HTF Circulating Manifold Kits

Jacketed Glass Reactor with Double Layer Reaction Vessel Heating Transfer Fluid Circulation Manifold Kits Dual-Layer Cooling Coil Condenser AC Motor with Gear Box Constant-Pressure Feeding PTFE Mechanical Stirring Sealing Kit 7 Openings Glass Lid Reaction Materials PTFE Temperature Probe Zero-Dead-Space Discharge Valve
$2,200.00 USD $0.00 USD
Capacity
5L
10L
20L
30L
50L
100L
150
200
Layers
Single Layer
Dual Layers
Condenser
Provided
No need
Dropping Feeding Funnel
Provided
No need
HTF Circulation Manifold Kits
Provided
No need
Quantity
Only 0 left

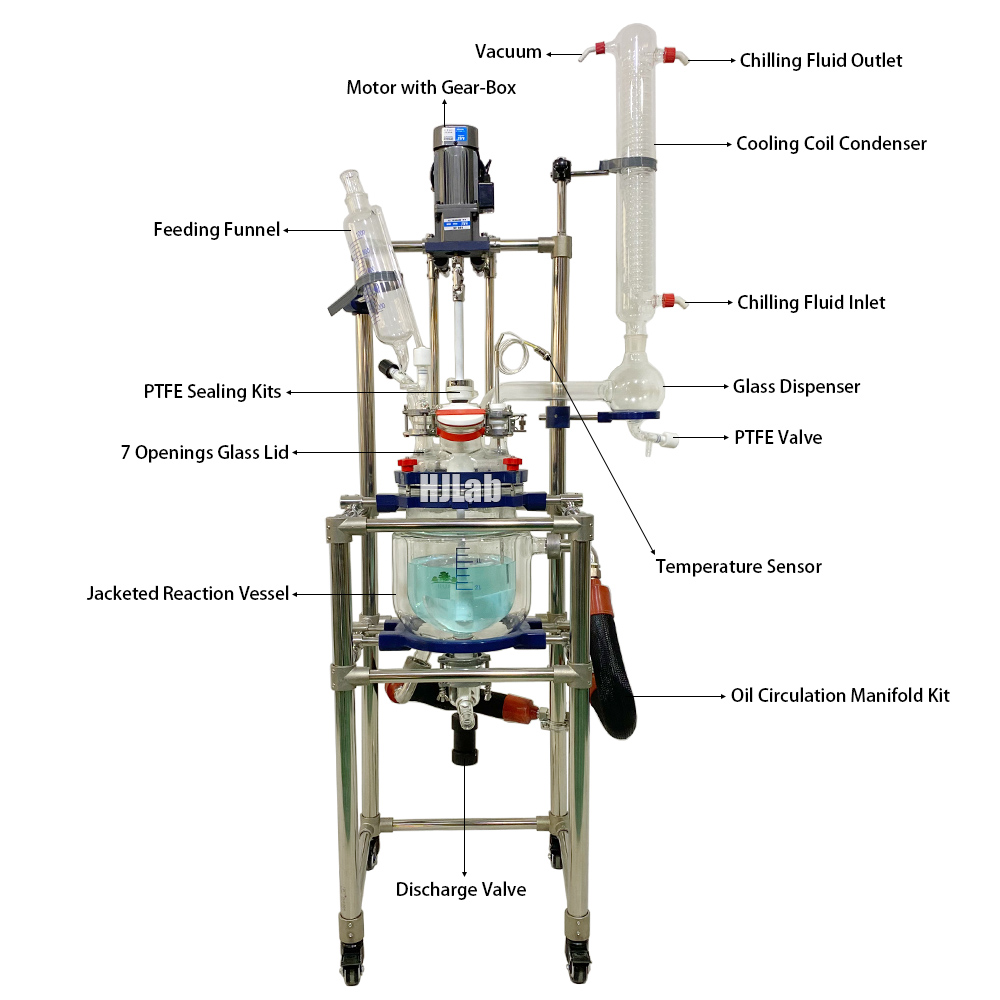

5L Jacketed Glass Reactor with Double Layer Reaction Vessel Heating Transfer Fluid Circulation Manifold Kits Dual-Layer Cooling Coil Condenser AC Motor with Gear Box Constant-Pressure Feeding PTFE Mechanical Stirring Sealing Kit 7 Openings Glass Lid Reaction Materials PTFE Temperature Probe Zero-Dead-Space Discharge Valve

  • Jacketed Glass Reactor with Double Layer Reaction Vessel


    •  Jacketed Glass Reactor with Double Layer Reaction Vessel

    • Heating Transfer Fluid Circulation Manifold Kits
  •
    • Dual-Layer Cooling Coil Condenser
  •
    • AC Motor with Gear Box
  •
    • Constant-Pressure Feeding
    • PTFE Mechanical Stirring Sealing Kit
    • Reaction Materials PTFE Temperature Probe
    • Zero-Dead-Space Discharge Valve

5L Jacketed Glass Reactor with Double Layer Reaction Vessel Heating Transfer Fluid Circulation Manifold Kits Dual-Layer Cooling Coil Condenser AC Motor with Gear Box Constant-Pressure Feeding PTFE Mechanical Stirring Sealing Kit 7 Openings Glass Lid Reaction Materials PTFE Temperature Probe Zero-Dead-Space Discharge Valve





  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3



Optional: Transparent-Color

Optional: Brown-Color

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L



Optional: Vertical Baffles inside of the vessel

Optional: Insulation Jacket

Optional: Heating Insulation Jacket

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Ring Baffles without the Thermal Jacket (5L ~ 200L)

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Condenser

Cooling Coil Condenser (0.2 ~ 2 m²)

Condensation Receiving Flask: none or 2L ~ 100L or Multiple Flasks

Totally Reflux to Reaction Vessel or Receiving Flask

Dropping Feeding Funnel

Dropping Feeding Funnel with Metering Valve and Equalizing Arm



Optional: 2L, 5L, 10L, 20L

Optional: Double Jacketed Feeding Funnel with Stirring

Optional: Peristaltic Pump

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



7 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)    60℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz
