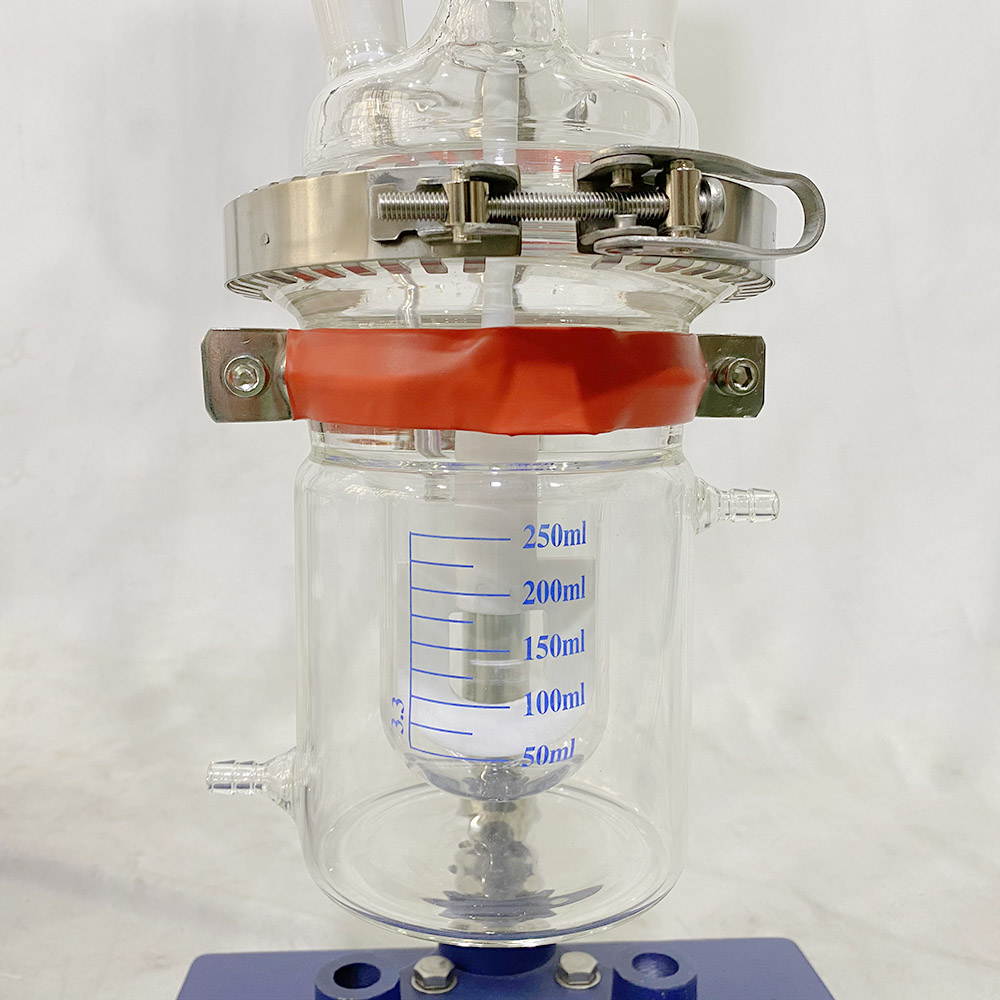

300ml Jacketed Glass Reactor without Discharge Valve
- 300ml Jacketed Glass Reactor
- Stirring Motor with Gear Reducer
- PTFE Stirring Rod and Paddles
- PTFE Mechanical Sealing (No-Debris)
- PTFE Temperature Sensor
- 4 Openings Glass Lid
-
General Specifications
| Item | Details |
|
Glass Materials |
High Borosilicate Glass 3.3 |
|
Wetted Parts |
Glass and PTFE |
|
Reaction Vessel Capacity |
300ml, 500ml, 1L, 2L, 3L and 5L |
|
Thermal Jacket |
Ring Baffles within the Thermal Jacket |
|
Stirring Motor |
DC Brushless Motor, 50W, 100W, 150W Stirring Range: 50 ~ 2200 RPM
Realtime Display: 1) Current Stirring Speed 2) Set Stirring Speed 3) Timer 3) Materials Temperature 4) Torque
RS485 Communication |
|
Mixing Sealing |
PTFE + Mechanical |
|
Condenser |
Cooling Coil Condenser |
|
Dropping Feeding Funnel |
Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm |
|
Glass Lid |
5 Openings: 1) Dropping Feeding Funnel: 24/40 2) Pressure Release (or Round-Top Funnel): 24/40 3) Materials Temperature Probe: 24/40 4) Condenser: 24/40 5) Stirring: 50# (Flange) or 29/42 |
|
Stirring Impeller |
PTFE Anchor Type PTFE Pitched Paddle Type PTFE Frame Type |
|
Operating Temperature |
-90℃ to +230℃ |
|
ΔT - Thermal Shock Resistance |
90℃ (Double Wall), 60℃ (Triple Wall) |
|
Operating Pressure |
Full Vacuum to Atmospheric Pressure |
|
Operating Jacket Pressure |
Up to +0.5 bar (0.05 MPa) |
|
Power Supply |
100V ~ 240V, 50Hz/60Hz |
-
Turnkey Package
