Single Layer Spherical Glass Reaction Vessel Reactor with Heating Jacket and Nitrogen-Gas-Inlet
-
-

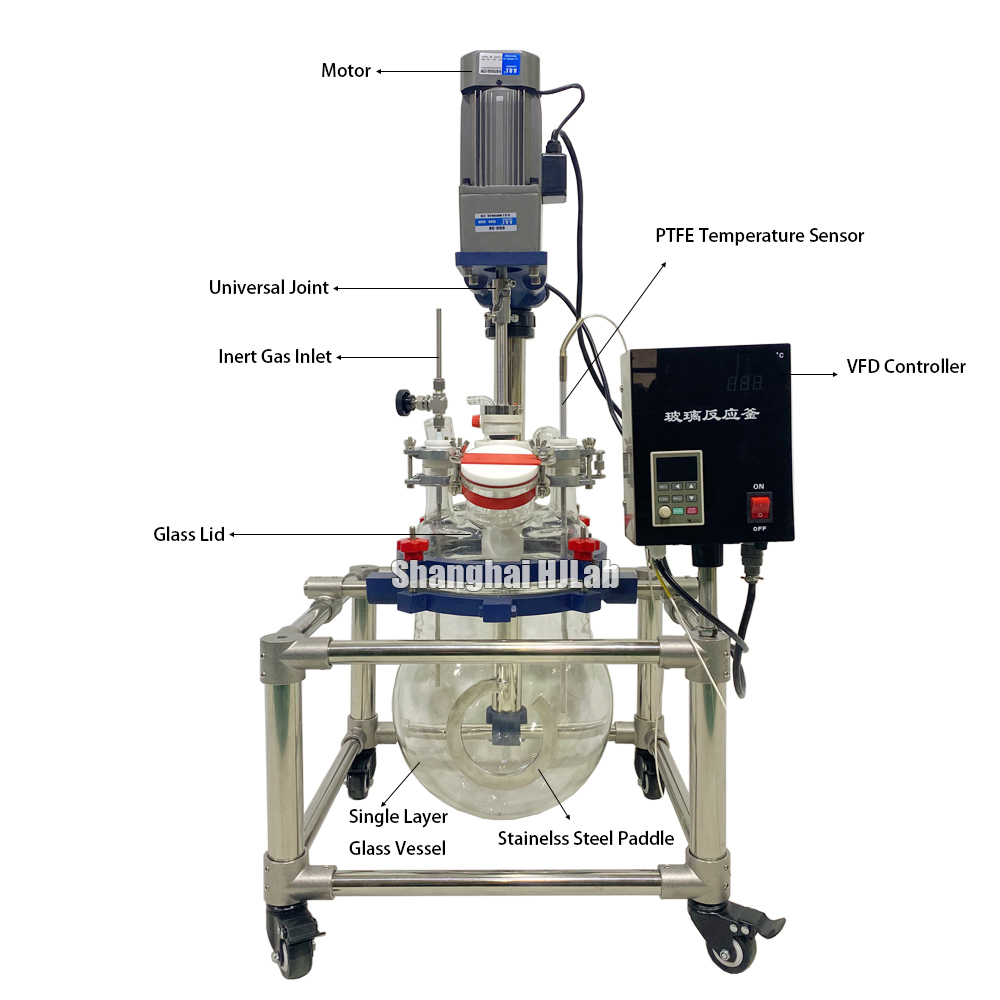

Single Layer Spherical Glass Reaction Vessel Reactor
- Nitrogen-Inert-Gas Inlet
-
-

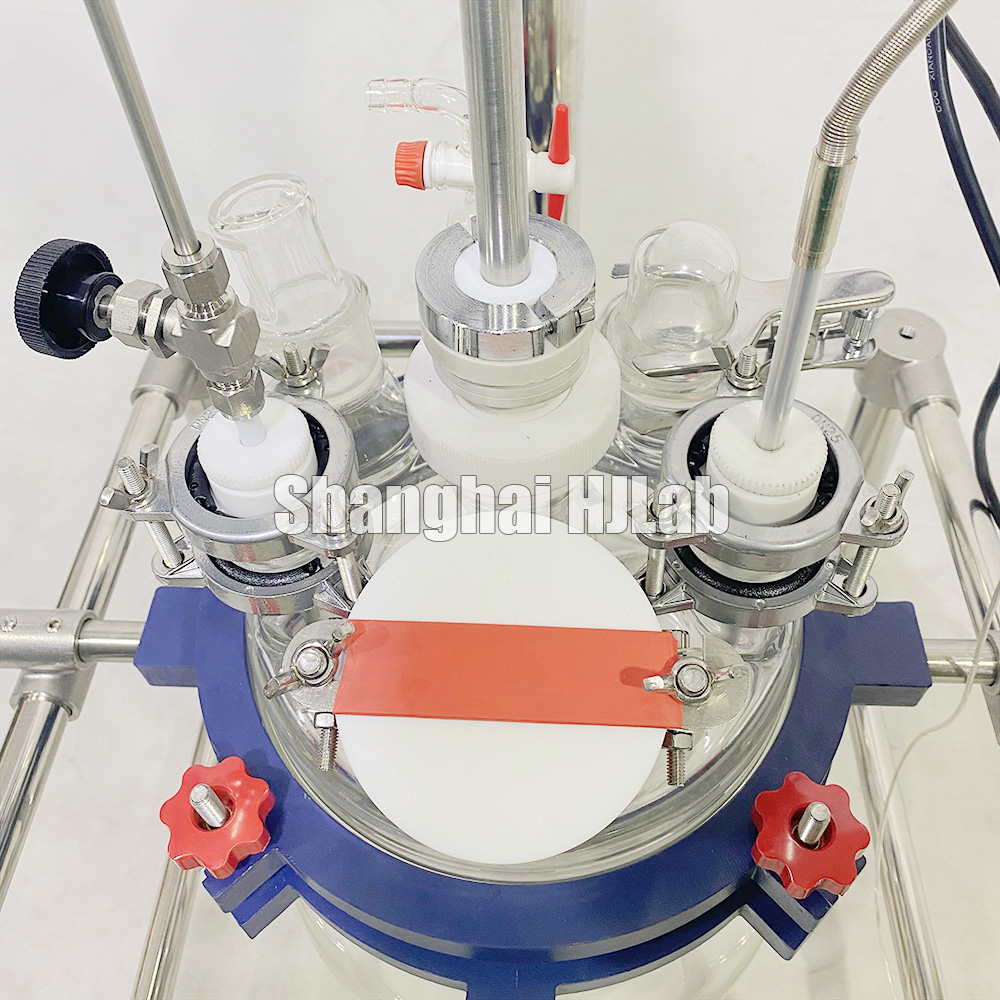

- Glass Lid with 7 Openings (Accept customized request)
-
- Reaction Materials PTFE Temperature Sensor
-
- Customized Stainless Steel Stirring Paddle
-
- Motor with Gear-Reducer
-
- Universal Joint between Motor and Stainless Steel Stirring Rod
-
- Spherical Glass Reaction Vessel can be with Heating Jacket for high-temperature application
-
General Specifications
|
Items |
Details |
|
Glass Materials |
High Borosilicate Glass 3.3
Optional: Transparent-Color Optional: Brown-Color |
|
Wetted Parts |
Glass and PTFE |
|
Reaction Vessel Capacity |
5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L
Optional: Vertical Baffles inside of the vessel Optional: Insulation Jacket Optional: Heating Insulation Jacket |
|
Thermal Jacket |
Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L) Ring Baffles without the Thermal Jacket (5L ~ 200L) |
|
Stirring Motor |
DC Brushless Motor, 50W, 100W, 150W AC Motor with Gear Reducer: 120W ~ 1500W Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W
Stirring Range: 50 ~ 600 RPM
Realtime Display: Mixing Speed, Materials Temperature |
|
Mixing Sealing |
PTFE + Mechanical |
|
Condenser |
Cooling Coil Condenser (0.2 ~ 2 m²) Condensation Receiving Flask: none or 2L ~ 100L or Multiple Flasks Totally Reflux to Reaction Vessel or Receiving Flask |
|
Dropping Feeding Funnel |
Dropping Feeding Funnel with Metering Valve and Equalizing Arm
Optional: 2L, 5L, 10L, 20L Optional: Double Jacketed Feeding Funnel with Stirring Optional: Peristaltic Pump |
|
Glass Lid |
Diameter: DN215, DN280, DN400 for your selection
7 Openings: 1) Dropping Feeding Funnel 2) Solid Materials Feeding 3) Stirrer 4) Liquid-Feeding 5) Temperature Probe 6) Condenser Reflux 7) Reserved (By default: Pressure Release) 8) Spray Cleaning or PH measurement (Optional) |
|
Stirring Impeller |
PTFE Anchor Type PTFE Pitched Paddle Type PTFE Frame Type |
|
Operating Temperature |
-90℃ to +230℃ |
|
ΔT - Thermal Shock Resistance |
90℃ (Double Wall) 60℃ (Double Wall) |
|
Operating Pressure |
Full Vacuum to Atmospheric Pressure |
|
Operating Jacket Pressure |
Up to +0.5 bar (0.05 MPa) |
|
Power Supply |
100V ~ 240V, 50Hz/60Hz |
-
Turnkey Package
