100L Chemical Synthesis Jacketed Glass Reactor Vessel with Explosion Proof Design and Dual Condensed Receiving Flasks
100L Chemical Synthesis Jacketed Glass Reactor Vessel with Explosion Proof Design and Dual Condensed Receiving Flasks
100L Chemical Synthesis Jacketed Glass Reactor Vessel with Explosion Proof Design and Dual Condensed Receiving Flasks
100L Chemical Synthesis Jacketed Glass Reactor Vessel with Explosion Proof Design and Dual Condensed Receiving Flasks
100L Chemical Synthesis Jacketed Glass Reactor Vessel with Explosion Proof Design and Dual Condensed Receiving Flasks
100L Chemical Synthesis Jacketed Glass Reactor Vessel with Explosion Proof Design and Dual Condensed Receiving Flasks
100L Chemical Synthesis Jacketed Glass Reactor Vessel with Explosion Proof Design and Dual Condensed Receiving Flasks
100L Chemical Synthesis Jacketed Glass Reactor Vessel with Explosion Proof Design and Dual Condensed Receiving Flasks
100L Chemical Synthesis Jacketed Glass Reactor Vessel with Explosion Proof Design and Dual Condensed Receiving Flasks

100L Chemical Synthesis Jacketed Glass Reactor Vessel with Explosion Proof Design and Dual Condensed Receiving Flasks

1) Explosion Proof Motor with Gear Reducer and Controller and Temperature Probe 2) Glass Lid with 8 Openings for multi-purposes 3) Cooling Coil Condenser and T-shaped Adapter and Dual Condensed Receiving Flasks 4) PTFE Pitched Stirring Paddles and PTFE spray cleaning inside of reaction vessel 5) Providing Heat-Transfer-Fluid Recirculation Manifold Kits 6) PTFE Flush Discharge Valve
Capacity
100L
Explosion Proof Motor and Controller
750W with Gear Reducer (3:1 Gear Ratio)
PTFE Spray Cleaning
Provided
Dual Condensed Receiving Flask
Provided

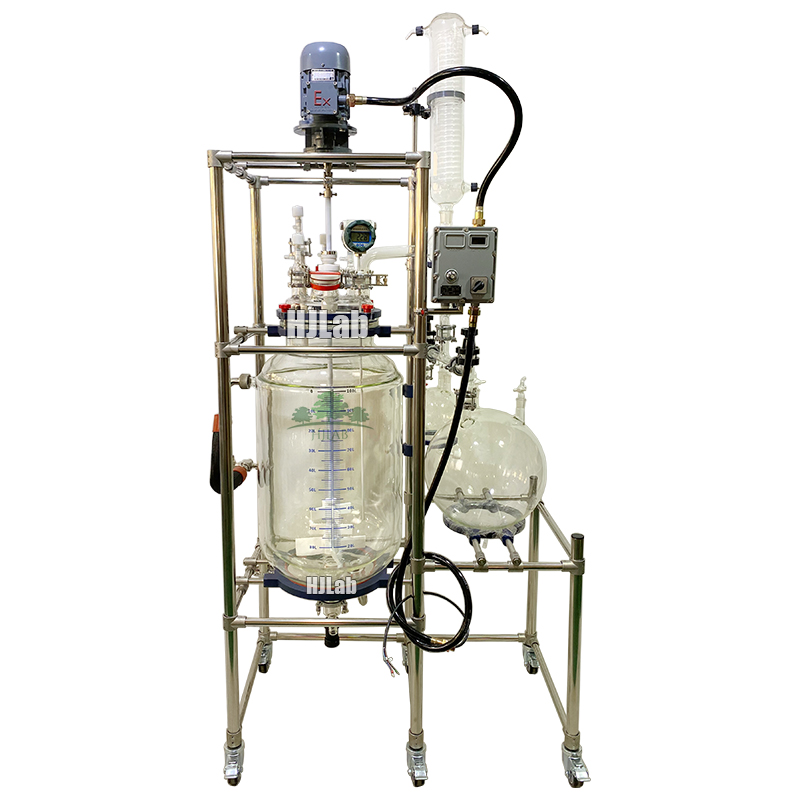

150L Chemical Synthesis Jacketed Glass Reactor Vessel with 150mm Solid Materials Feeding Openings and PTFE Spray Cleaning

  • 100L Chemical Synthesis Jacketed Glass Reactor with Explosion Proof Design and Dual Condensed Receiving Flask


  • Explosion Proof Motor with Gear Reducer and Controller and Temperature Probe
  • Glass Lid with 8 Openings for multi-purposes
  • Cooling Coil Condenser and T-shaped Adapter and Dual Condensed Receiving Flasks
  • PTFE Pitched Stirring Paddles and PTFE spray cleaning inside of reaction vessel
  • Providing the Heat-Transfer-Fluid Recirculating Manifold Kits
  • PTFE Flush Discharge Valve without any dead-space

Pilot Plant Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with no liquid-flooding phenomenon during distillation evaporation



  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L

Vertical Baffles inside of the vessel (Optional)

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Full Jacket Design (5L, 10L, 20L, 30L)

Filtration Area

ID215 Flange: 346 cm² (5L, 10L, 20L, 30L, 50L)

ID280 Flange: 615 cm² (30L, 50L, 80L, 100L)

ID400 Flange: 1,256 cm² (50L, 80L, 100L, 150L, 200L)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE



Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Optional: Magnetic coupling seal

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



7 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz



  • Turnkey Solution Provider


Lifting Tilting Jacketed Glass Reactor with Dual Stages Condenser without Bottom Discharge Valve

Jacketed Glass Reactor + Rotary Evaporator + Turnkey Package Solution Provider

Jacketed Glass Reactor with Turnkey Package: Heating Circulator, Recirculating Chiller, Vacuum Pump and Dynamic Temperature Controller TCU



  • Something else in mind?


At HJLab, we can help you to find the best solution for you. If you have additional requirements or a design already in mind, feel free to send us a message and/or drawing so that we can understand your process better and provide you with a customized product that meets your exact needs.
