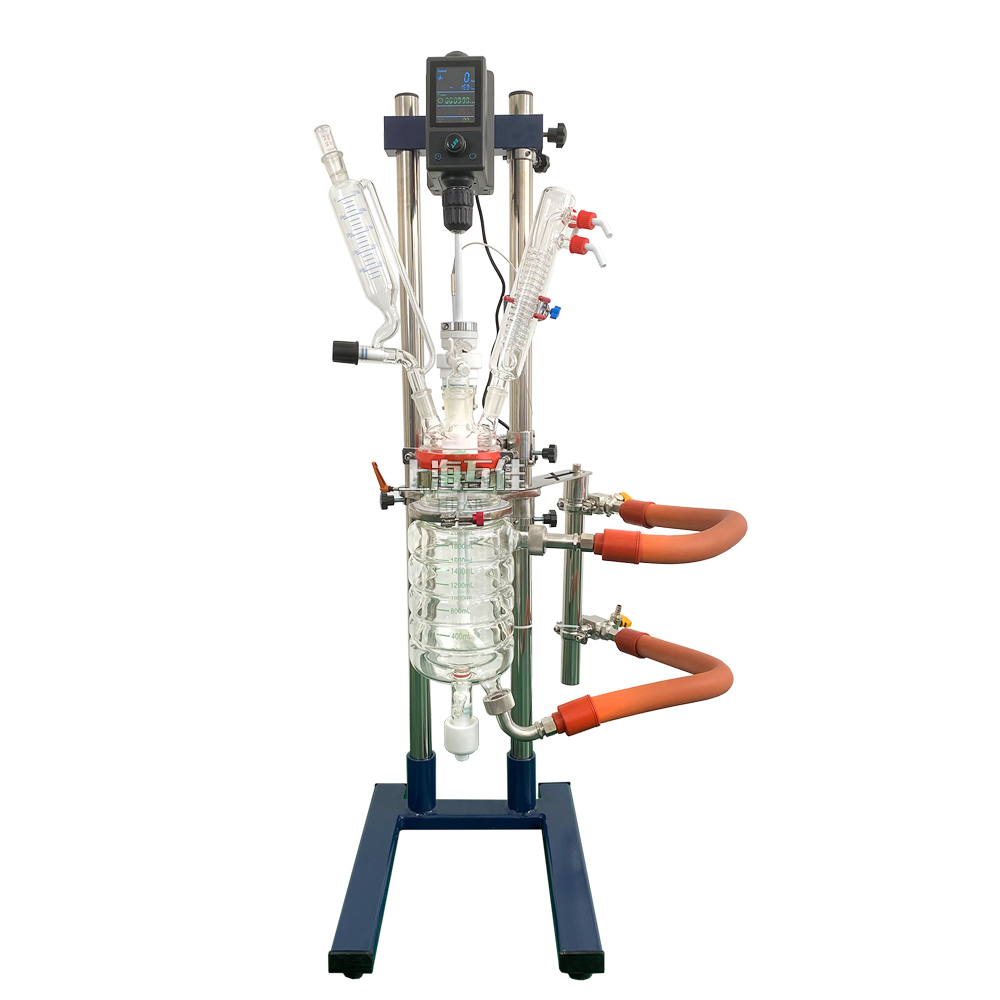

300ml Glass Reactor
Dec 16,2022 | Shanghai HJLab
Application characteristics of double glass reactor:
High borosilicate glass material, with excellent physical and chemical properties.
It can be used in the range of high temperature (200 ℃) to low temperature (- 80 ℃).
It can work under normal pressure and negative pressure, and the vacuum degree can reach 0.095MPa.
The allowable pressure range in the kettle: -0.1MPa~0MPa.
Teflon+FV rubber cock or discharge valve; "O" ring with tetrafluoroethylene protective layer.
The kettle body is 200ml, 300ml, 500ml, 1L, 2L, 3L and 5L.
It is equipped with vacuum gauge and temperature display unit.
Technical parameters of double glass reactor:
Jacket volume (L): 0.9
Material volume (L): 3
Mixing speed (rpm): 50~500
Maximum torque (Ncm): 300
Power supply (V/Hz): 220V-240V, 50/60Hz
Overall dimension (mm): 405W × 420D × 1020H
Operating pressure (Mpa): normal or negative
